teléfono analógico / VoIP / IP65 / para aplicaciones ferroviarias
JR204-CB J&R Technology Ltd



  • Redes:

    analógico, VoIP

  • Tipo de protección:


  • Aplicaciones:

    para aplicaciones ferroviarias, para túnel, para red vial, para aplicaciones marinas, para mina subterránea, para banco, para estación de taxis, industrial

  • Otras características:

    de emergencia, mural, para entorno difícil, de exterior, antivandalismo, resistente a las intemperies, estanco

  • Nivel sonoro:

    Máx.: 90 dB

    80 dB

    Mín.: 75 dB

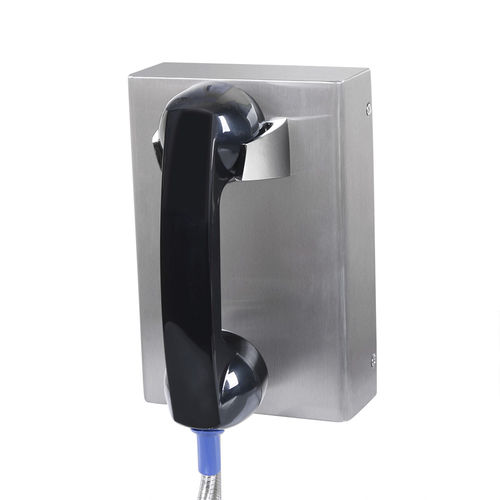

Hot Line Auto-Dial Phones/Auto-dial Phone/Automatic Dialers JR204-CB

This Telephone is housed in vandal resistant steel box and manufactured to a high standard, it is offer increased resistance to vandalism, and ensure that the primary function of communications is maintained at all times, resulting in a highly reliable product with a long MTBF.
Ideal for parking lots, prisons, railway/metro platforms, hospitals, police stations, ATM machines, stadiums, inside and outside building etc.


Standard Analogue,VoIP/SIP,GSM phone available
Weather protection IP65
Tamper resistant fixings
Surface mounting or Desk mounting,Simple installation
Mechanical hookswitch or Magnetic reed hook-switch ensures minimal wear and tear
Fast-fit terminal connection
Hot Line Auto-Dial Phones
Telephone line powered for Analogue Phone
DC 5V powered or PoE for IP Phone
Quality of Service (QoS): ensuring optimal delivery of voice
Type of Service (ToS): high throughput and reliability (RFC3168)
SIP (Session Initiation Protocol) RFC3261
TR069 (Technical Report 069): for advanced status monitoring and control
Configuration: web interface or server based configuration file. Static IP address provisioning or DHCP.
Non-volatile memory
Weatherproof and corrosion resistant handset
Stainless steel armoured or black curly handset cord
RJ45 connector for IP Phone
CE, FCC,ISO9001,ROSH compliant

Operating: -40°C to +65°C
Storing: -40°C to +75°C
Ringing Tone
Shrill warble tone 90 dBA @ 1 metre typical
Calculated to have an M.T.B.F. in excess of 50,000 hours using
MF (tone)
