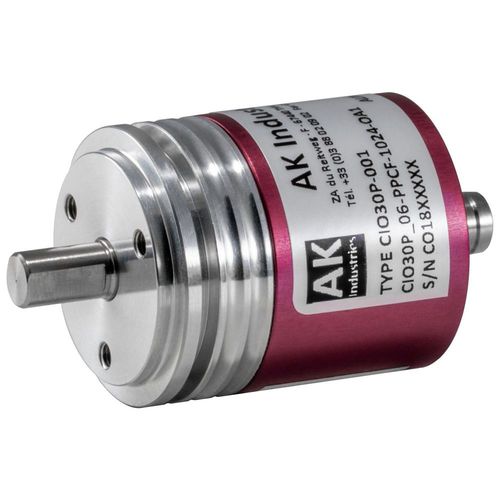

Encoder rotativo incremental CIO30P

ópticocon eje macizode aluminio

Compact, robust and with very high resolution, it is suitable for applications where space is limited. It enables precise measurement of the displacement and angular position of the moving part of a machine, instrument, robot or other mechanism. Associated with a motor, it can also be used to measure its speed. The CIO30P has a wide range of applications, from integration in design projects to repair/maintenance of existing equipment. It is used in various branches of industry in general, construction and civil engineering, transport, civil aeronautics and defense... Body: Ø30mm Output stage: Push-Pull (HTL) RS422 (TTL) compatible Available output signals: channels A, B, 0, /A, /B, /0 or channels A, B Resolution: 1 to 65536 points Power supply: 8...30Vdc Output axis : Ø4mm / Ø5mm / Ø6mm Operating temperature range : -20°C to 100°C In addition to the standard version, AK-Industries can also make the necessary adaptations to suit your needs. Don't hesitate to ask!
