Cutter con cuchilla trapezoidal E series

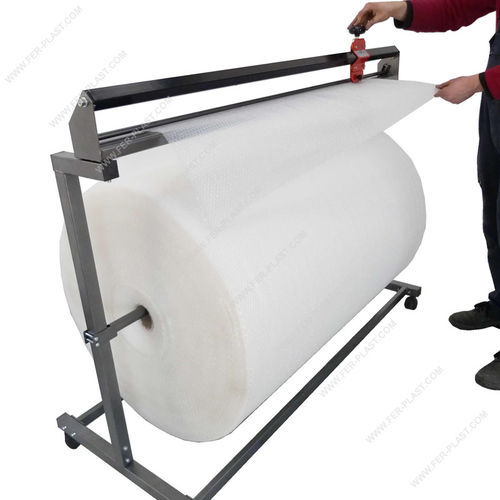

CORTADORAS HORIZONTALES SERIE E Universal horizontal cutters of the Serie E for paper, corrugated cardboard, reinforced papers and polyethylene, polyethylene film, bubble wrap, and expanded polystyrene up to 6 mm cutting thickness. The use of the cutter is extremely simple: insert the material under the pressure bar, manually operate the cutter blade, and you get a clean and precise cut in both directions. All cutters are mounted on swivel wheels with brakes. For space reasons, the product is shipped disassembled. - Model: 100 E, 140 E, 160 E, 200 E, 250 ER - Cutting width (cm): 100, 140, 160, 200, 250 - Blade type: Trapezoidal (standard) for cutting plastic film - Load: 50 kg (100 kg with optional), 100 kg for 250 ER - Max. roll diameter: 100 cm - Cutter dimensions (cm): Width 118/158/178/218/268, Depth 80, Height 115 - Weight (kg): 22/26/28/30/36 The cutter is supplied complete with MODEL A CUTTING GROUP which uses trapezoidal blades for paper, corrugated cardboard, plastic films such as reinforced polyethylene, bubble wrap, and foam. OPTIONAL REINFORCED SUPPORT When ordering, it is possible to request the cutter with a load capacity for reels up to 100 kg, by selecting the option in the accessories and paying a supplement. - Models available: 100 E, 140 E, 160 E, 200 E, 250 ER - Cutting width: from 100 cm to 250 cm depending on the model - Standard blade: trapezoidal for plastic film - Load capacity: 50 kg (100 kg optional), 100 kg for 250 ER - Max roll diameter: 100 cm - Dimensions (width x depth x height): from 118x80x115 cm to 268x80x115 cm - Weight: from 22 kg to 36 kg
