Ascensor automático W181 B

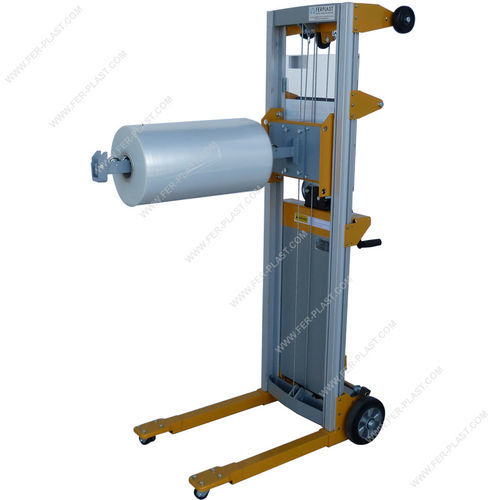

BOBINE LIFTER WITH INTERCHANGEABLE ACCESSORIESPractical and functional, it allows lifting reels up to 150 kg to a maximum height of 2600 mm when equipped with accessories (fixed pin, V-table, roller shaft, etc.).If equipped with forks and platform, it allows lifting 180 kg up to a height of 2450 mm.The exclusive crank winch allows lifting the load with minimal effort and, thanks to the built-in automatic clutch, can lock the lifter at any time during lifting. The load can only be lowered if the operator intentionally acts on the winch and lowers it gradually.Equipped with braided rope with textile core, horizontal push handles, pedal parking brake system, aluminum structure, and oven-cured epoxy powder coating.The lifter can be equipped with various accessories for lifting and transporting reels.Technical featuresMOD. W181 B for reelsMaximum capacityKg. 180Dimensionsmm. 630 (D) x 880 (W) x 1720 h.(H)Pin height (min/max)mm. 90 - 2450 (B/B1)Mast heightmm. 1720 - 3000Free heightmm. 1120Rear wheelsRubberFront wheelsNylonWidth of front supportsmm. 620Total material widthmm. 510Internal distance of supportsmm. 340Height of supports from the groundmm. 85Weightkg. 70OPTIONAL• Fixed reel holder ACC-PB L600Reel shaft with diameter mm. 50 and length mm. 600, allows horizontal handling and transport of reels with a maximum width of mm. 600 and maximum weight of 100 Kg.• Fixed reel holder ACC-PB60-2Reel shaft with diameter mm. 76 and length mm. 600, allows horizontal handling and transport of reels with a maximum width of mm. 600 and maximum weight of 150 Kg.• Reel pin ACC-PB10 with extended supportsFixed reel shaft with length 1000 mm and capacity 50 Kg, allows horizontal handling and transport of reels + extended supports to prevent the lifter from tipping forward.• Roller reel shaft ACC-WP-A02Ideal for horizontal transport of reels with a maximum width of mm. 500, min. internal diameter mm. 76, max. external diameter mm. 500 - maximum weight 150 kg.• ACC-WP-A02-2 Roller reel shaft with safety stop, length mm. 600 and diameter mm. 70:Ideal for horizontal transport of reels with a maximum width of mm. 500, min. internal diameter mm. 76, max. external diameter mm. 500 - maximum weight 100 kg.• ACC-WP-A03 for lifting and rotating reels:Allows gripping by shaft and expansion with manual handwheel and subsequent horizontal/vertical rotation by release lever.Warning: when using this accessory, the lifting height is reduced by 200 mm.• Forks ACC-FP with flat platformOptional forks with nylon loading surface, capacity 180 kg, maximum lifting height 2450 mmReel size:- internal diameter mm. 76- max. external diameter 500- max. width mm. 600- max. weight kg. 60Maximum capacity: 180 kgDimensions: 630 x 880 x 1720 mmPin height (min/max): 90 - 2450 mmMast height: 1720 - 3000 mmFree height: 1120 mmRear wheels: RubberFront wheels: NylonWidth of front supports: 620 mmTotal material width: 510 mmInternal distance of supports: 340 mmHeight of supports from the ground: 85 mmWeight: 70 kg
