Caldera de agua caliente HGV and HGV-W

de vaporeléctricade gas

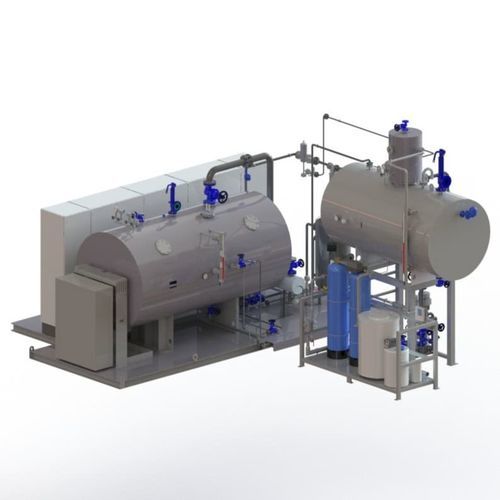

HGV and HGV-W Range by Giconmes – High-capacity steam and hot water boilers (up to 10 MW in steam and 30 MW in hot water). Complete systems including feed tank, blowdown systems, electrical cabinet, and control panel, all mounted on a SKID. HGV Range – Steam Boilers Electric energy conversion to heat is increasingly common, especially with the rise of renewable energy installations. Surplus electricity at low cost can be converted into thermal energy using 'PowertoHeat' systems. HGV boilers are specially manufactured for heat transfer and can produce up to 10,000 kg/hour of steam at 16 bar. Plug and play: mounted on SKIDS for easy on-site installation. Electric operation does not require gas/diesel supply or chimney system. Up to 10 MW and 15 bar. Low and medium voltage. Control panel with system visualization, multiple interfaces with existing Building Management Systems (BMS). Design and manufacture according to PED 2014/68/EU or ASME Sect. VIII Div. 1. Included elements in a high-capacity clean steam system: Clean steam generator: High-quality AISI 316 stainless steel clean steam boiler. Blowdown system: Cleans the bottom of the boiler where sediments accumulate. Level control: By water conductivity. If the value is too high, the valve opens until the measured value drops below the set point. Pressure control: Adjusted mechanically (mechanical pressure control valve) or electrically (pressure transmitter and electric actuator valve). Steam supply: Clean steam outlet from the generator. 500-liter fermenter: Accumulates boiler feed water and collects condensate. Includes water preheating system. System to drain excess water in the tank. Heating flange for electric resistances. Cooling system. Level control: Water level control system with protection against low and high water. Water preheating: Feed water must be preheated by steam injection to protect the boiler from large temperature differences and thermal stresses. Drainage: For emptying the tank. Water supply connection: To feed water pumps and boilers. Condensate return: Collects condensate from various elements, e.g., steam pipe drainage points or heat exchangers. Blowdown cooler: Cools hot water from blowdowns. Water sample cooler: For daily analysis of boiler water. Feed water pump unit: Vertical multistage centrifugal feed water pump designed according to maximum steam pressure and boiler flow capacity. Main control panel: Independent regulation of steam generation and control of safety devices. HGV Range – Technical Specifications Table Model No.Capacity (kg/h)Nominal Power (kW @ 10bar)Operating Pressure (bar(g))Approx. Dimensions (mm)Voltage / Frequency HGV-2502501406/10/163200 x 1500 x 20003 PH 400V/690V – 50Hz/60Hz HGV-5005002806/10/163750 x 1500 x 23003 PH 400V/690V – 50Hz/60Hz HGV-7507504206/10/164200 x 1500 x 25003 PH 400V/690V – 50Hz/60Hz HGV-100010005606/10/164500 x 1500 x 26003 PH 400V/690V – 50Hz/60Hz HGV-150015008356/10/165000 x 1750 x 32003 PH 400V/690V – 50Hz/60Hz HGV-2000200011206/10/165500 x 1750 x 35003 PH 400V/690V – 50Hz/60Hz HGV-2500250013956/10/166000 x 2000 x 38003 PH 400V/690V – 50Hz/60Hz HGV-3000300016706/10/16on request3 PH 400V/690V – 50Hz/60Hz HGV-4000400022406/10/16on request3 PH 400V/690V – 50Hz/60Hz HGV-5000500027906/10/16on request3 PH 400V/690V – 50Hz/60Hz HGV-6000600033406/10/16on request3 PH 690V – 50Hz/60Hz HGV-7500750044806/10/16on request3 PH 690V – 50Hz/60Hz HGV-100001000055806/10/16on request3 PH 690V – 50Hz/60Hz HGV-W Range – Hot Water Hot water generation using electric resistances. The desired hot water temperature is controlled by a microprocessor. Manufactured with electric resistances. Up to 30 MW. Digital control panel with display, integrates with building control systems (BMS). Suitable for heating, district heating, and domestic hot water production. HGV-W Range – Technical Specifications Table Model No.Capacity (liters)Nominal Power (kW)Water Flow (m3/h) ΔT=20KApprox. Dimensions (mm)Voltage / Frequency HGV W-75215723.091400 x 1000 x 18003 PH 400V/690V – 50Hz/60Hz HGV W-1003501084.641400 x 1000 x 18003 PH 400V/690V – 50Hz/60Hz HGV W-1605001626.9651400 x 1000 x 18003 PH 400V/690V – 50Hz/60Hz HGV W-25080025210.831750 x 1100 x 22003 PH 400V/690V – 50Hz/60Hz HGV W-30080030613.161790 x 1100 x 20003 PH 400V/690V – 50Hz/60Hz HGV W-400125039617.031900 x 1300 x 22003 PH 400V/690V – 50Hz/60Hz HGV W-500125050421.672820 x 1700 x 22503 PH 400V/690V – 50Hz/60Hz HGV W-660125066628.632820 x 1700 x 22503 PH 400V/690V – 50Hz/60Hz HGV W-800125079234.052820 x 1700 x 22503 PH 400V/690V – 50Hz/60Hz HGV W-10002500100842.992820 x 2350 x 22003 PH 400V/690V – 50Hz/60Hz HGV W-12003000118851.072820 x 2350 x 23503 PH 400V/690V – 50Hz/60Hz HGV W-15003500151265.002820 x 2450 x 24503 PH 400V/690V – 50Hz/60Hz HGV W-20004400201685.984000 x 2500 x 25003 PH 400V/690V – 50Hz/60Hz Why choose an electric steam generator? Efficiency: Even at low utilization levels, the electric alternative is more efficient than fossil, allowing for a smaller installation for the same generation capacity. Zero emissions: Neutral in direct emissions and can be 100% clean using renewable energy. Safety: No combustion, smoke, or other gases. No specialist or boiler room required. Maintenance cost: Structurally and mechanically simpler, allowing for faster and cheaper maintenance. Incremental power (modularity): Possibility to configure a modular generator with several independent power options. Installation simplification: Electric boiler can be installed close to the steam application point, reducing installation costs and inefficiencies in pressure and temperature. Industries and applications: Steam is used in heating, sterilization, or sanitization processes. Giconmes engineers have developed countless applications based on heat transfer through steam since 1957. Examples include bakery, healthcare, brewing, and biotechnology industries. Technical characteristics / specifications: Steam capacity: up to 10,000 kg/h at 16 bar (HGV) Hot water capacity: up to 30 MW (HGV-W) Voltage: 3 PH 400V/690V – 50Hz/60Hz Construction: Stainless steel AISI 316 (clean steam) Plug and play SKID mounting Digital control panel, BMS integration Design: PED 2014/68/EU or ASME Sect. VIII Div. 1 Applications: heating, sterilization, hot water production, district heating
