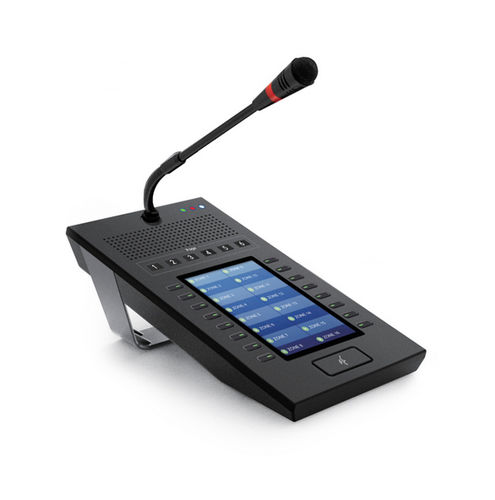

Terminal telefónico PoE KNPA800mini

Ethernetpara equipo de sonidocon luz de señalización

Overview
Paging Microphone / PA Call Station with a gooseneck microphone

Model & Physical
Model: KNPA800mini
Size: 150 (L) x 100 (W) x 76 (H) mm (excluding microphone)
Material: ABS (Acrylonitrile Butadiene Styrene)

Features
Purpose-Built Design

• Exclusively engineered for professional PA applications
• EN 54-16 and ISO 7240-16 certified for safety compliance
• CE marked and RoHS compliant for environmental standards
• Designed for 24x7 continuous operation with energy-saving features during standby

User-Friendly Interface

• 16 (8*2) free-programmable buttons
• 3.5-inch TFT display
• Clear status indicators for power and communication
• Push-to-talk activation with visual confirmation
• One button with security cover for emergency function
• Equipment 96 DSS keys (16*6 pages)
• Integrated time-synchronization capability with GPS or local Observatory time servers

Superior Audio Management

• Professional gooseneck unidirectional microphone
• Adjustable microphone sensitivity and volume control
• 3.5mm jack for wireless microphone input
• Software-configurable parametric equalization and limiting
• Built-in configurable chime generator with single-tone, 2-tone and 4-tone options
• High-quality audio with frequency response 100 Hz - 20 kHz and signal-to-noise ratio ≥60 dB

Flexible Broadcasting Capabilities

• Selective zone, group-zone, and all-call paging options
• Pre-recorded message distribution with zone targeting
• Live announcements with exceptional clarity
• Configurable emergency alert buzzer with adjustable volume and instant override
• Advanced scheduling for automated announcements (specific dates, repeated daily/weekly/monthly)
• Priority-based audio routing with emergency override functionality

Enterprise-Grade Reliability

• Power over Ethernet (PoE) operation for simplified installation (no external power supply required)
• Dual Ethernet ports for network redundancy
• Supports remote monitoring with visual and aural output level indicators
• Extended connectivity options: CAT5 up to 100 m; Fiber + Pair cable up to 3 km

Additional Notes

• Paging Phone Size and detailed dimension graphics provided on product page

Caractéristiques / spécifications techniques

• Model: KNPA800mini
• Dimensions: 150 x 100 x 76 mm (L x W x H, excluding microphone)
• Material: ABS
• Display: 3.5-inch TFT
• Programmable buttons: 16 (8*2)
• DSS keys: 96 (16*6 pages)
• Microphone: Professional unidirectional gooseneck; adjustable sensitivity and volume
• Aux input: 3.5mm jack for wireless microphone
• Audio frequency response: 100 Hz – 20 kHz
• Signal-to-noise ratio: ≥60 dB
• Chime generator: single-tone, 2-tone, 4-tone configurable
• Time sync: GPS or local Observatory time servers
• Network: PoE operation; dual Ethernet ports for redundancy
• Connectivity range: CAT5 up to 100 m; Fiber + Pair up to 3 km
• Certifications: EN 54-16, ISO 7240-16, CE marked, RoHS compliant
