Altavoz fijado en escuadra KNSIPLB-Ex15

para zona peligrosaestancoresistente a las intemperies

Product Overview

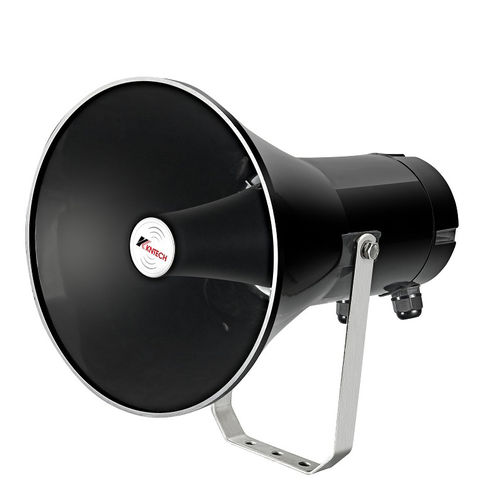

Explosion-proof IP Network Horn Speaker KNSIPLB-Ex15. The KNSIPLB-Ex15 is a simple-to-install explosion-proof loudspeaker providing clear, long-range speech for remote speaking in video surveillance and public address applications. It supports live remote announcement and can play pre-recorded audio files when manually or automatically triggered in response to alarm events. The unit integrates with Voice over IP (VoIP) systems using SIP and supports Power over Ethernet (PoE), requiring a single network cable for communication and power. The speaker includes a built-in amplifier and is a standalone unit for flexible, scalable and cost-effective system design.

Key Features

• Explosion-proof speaker design certified by ATEX standard.
• Material/Colour: Anti-static Polyamide / Black.
• Waterproof and dust proof rating: IP66.
• Service temperature range: -40 °C to +55 °C.
• High sound pressure level exceeding 92 dB despite low power consumption.
• 360° lossless broadcast capability.
• Supports IP network integration and SIP (Session Initiation Protocol) for VoIP telephone systems.
• Built-in amplifier and Power over Ethernet (PoE) support; single-cable installation for power and communication.
• Pre-recorded audio included; users can upload custom audio files.
• Typical applications: petroleum, metallurgy, chemical industry, offshore/oil, nuclear power, shipbuilding, tunnels and other projects requiring explosion-proof speakers.

Type Description
The appearance of the speakers' mold is the same; differences relate to whether a built-in transformer is included or not.

Product Packing
Unit size: 250 (∅) * 352 (L) mm
Unit G.W.: 3.7 kg
1 pcs in an inside box. Box size: 270 x 270 x 390 mm G.W.: 3.7 kg
2 pcs in a CTN box. CTN box size: 570 x 290 x 420 mm G.W.: 7.8 kg

Images and Technical Drawings
Includes product images, ATEX marking, frequency response curve, product size drawing and installation dimension drawing for reference.

Caractéristiques / spécifications techniques

• Modèle: KNSIPLB-Ex15
• Taille produit (main): 413 x 254 x 277 mm
• Matériau: Anti-static Polyamide (noir)
• Indice de protection: IP66 (waterproof & dustproof)
• Température de service: -40 °C à +55 °C
• Niveau de pression acoustique: > 92 dB
• Alimentation / Intégration: Power over Ethernet (PoE); SIP/VoIP compatible
• Amplificateur: intégré
• Fonction audio: supporte fichiers audio pré-enregistrés et upload d'audio personnalisé
• Emballage et poids: unité GW 3.7 kg; carton 2 pcs GW 7.8 kg
