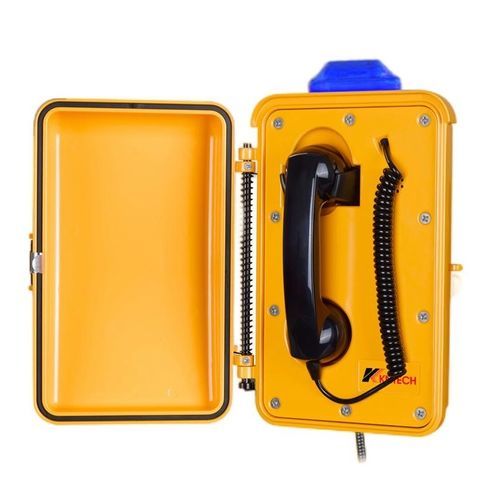

Teléfono analógico KNSP-03-D23

IPPoELAN

Blue Light Stations
Model: KNSP-03-D23
Size: 320*205*120mm
Material: Aluminum alloy

Features

• Robust aluminium alloy die-cast body, vandal & tamper-resistant hardware.
• Waterproof rating IP66 dust proof.
• With line powered blue indication lamp.
• Noise canceling microphone; filters out train/car noise for clearer call quality. Without keypad, supports hotline setting and scroll dialing.
• Magnetic reed hook-switch.
• DC input overvoltage and overcurrent protection and RJ45 surge protection.
• Heavy Duty handset with hearing aid compatible (HAC) receiver.
• Handset with industrial strong curly cord.
• Door cover: self-orienting and good self-closing for convenient use.
• Temperature range from -40°C to +70°C.
• Support echo cancellation.
• Support remote software upgrade, configuration and monitoring.
• Powder coated in UV stabilized polyester finish.
• Applications include tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Order information
Model number | Power Suppl | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03-IP-Y_P | POE | SP0030022
KNSP-03-IP-Y_ADP | DC12V 1A + POE | SP0030092

Certifications

• Australian communications: AS/CA S004
• Australian Equipment-safety: AS/NZS 60950.1:2015
• RCM: AS/NZS CISPR 32
• EMC: EN55032, EN55024, EN61000-3-2

Installation / Size
Unit size: 320 * 205 * 120 mm (size diagram provided on product page).

Packaging
Unit size: 320 * 205 * 120 mm
Net weight (unit): 4.86 KG
1 pcs packing box size: 439 * 277 * 191 mm (N.W: 5.8 KG)
6 pcs in 1 outer carton box size: 730 * 390 * 340 mm (N.W: 36.5 KG total for carton as indicated)

Specification

• VoIP SIP 2.0 telephone.
• DTMF dialing.
• Audio codecs: G.711, G.726, G.729.
• MTBF: 100,000 hours; MTTR: 2 hours.
• Network: 10/100 BaseTX Ethernet, RJ45 (Cat5e or better).
• Communication: Full duplex 2-way.
• IP Protocols: IPv4, TCP, UDP, RTP, DHCP, SIP.
• Call control signaling: VOIP SIP Info (DTMF), RFC 2833 (DTMF).
• LAN: Power over Ethernet (PoE, 802.3af) supported; 1 x LAN (IEEE 802.3).
• Power: PoE IEEE802.3af Class 0; local power 12V DC (Idle 2W, Max 10W).
• Control: IEEE 802.1x, STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004).
• Auxiliary/aux output: 1 Aux Output dry contact (option), rated load: 0.3 A at 125 VAC; 1 A at 30 VDC; rated carry current: 1 A. Max switching voltage: 125 VAC, 30 VDC; Max switching current: 1 A.
• Echo cancellation code: ITU-T G.167/G.168.
• Programming and configuration via Web GUI; non-volatile flash memory; remote automatic software upgrade and centralized monitoring supported.

System
The blue light station is used as an industrial emergency alarm/help point, commonly deployed in chemical industry and nuclear power generation areas as an emergency alarm and alarm warning device. It integrates the blue indication lamp with an industrial telephone.

Application
Designed for outdoor and industrial use: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridges and other hazardous or demanding environments.

Detailed pictures
Multiple product images and multi-angle views of the blue light station are provided showing lamp, handset, mounting and installation details.

Caractéristiques / spécifications techniques

• Modèle: KNSP-03-D23
• Dimensions: 320 x 205 x 120 mm
• Matériau: Aluminium alliage (die-cast)
• Indice de protection: IP66
• Température de fonctionnement: -40°C à +70°C
• Options d'alimentation: DC12V 1A, PoE (802.3af), ou DC12V+PoE
• Consommation: Idle 2W, Max 10W (local power)
• Poids net: ~4.86 KG
• Codecs audio: G.711, G.726, G.729
• MTBF: 100000 hours
• Interfaces réseau: 10/100 BaseTX Ethernet, RJ45
• Sortie auxiliaire: 1 dry contact (1A)
• Protection: RJ45 surge protection; DC input overvoltage/overcurrent protection
• Autres: Noise cancelling microphone, HAC handset, magnetic reed hook-switch, powder coated UV stabilized finish
