- Gancho de acero inoxidable
- HONGKONG KOON TECHNOLOGY LTD
Gancho para teléfono H2de acero inoxidablede acero inoxidable
Añadir a mis favoritos
Añadir al comparador
Características
- Tipo
- de acero inoxidable
- Aplicaciones del producto
- para teléfono
- Material
- de acero inoxidable
Descripción
Product Name

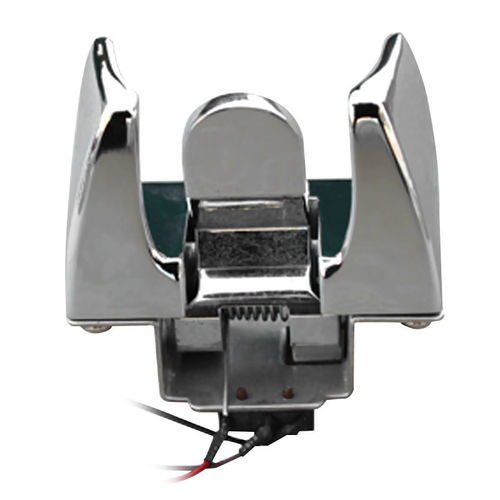

Kntech Stainless steel mechanical hook
Model
Kntech H2
Size
Not specified
Material
Stainless steel
Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, can be a good anti-corrosion, anti external damage, to ensure its excellent performance. Our Hook is suitable for outdoor public telephones.
Standard
GB/15279-94 Automatic telephone technology conditions
YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods
Conditions of using
Main structure parts
Insulation resistance
In the switch between lead wires and metal shell, with TH2681A insulation resistance tester tests (DC 250 V, insulation resistance: 50M)
Withstand voltage
In the switch between lead wires and metal shell, with ET2670A hipot tester tests, shall meet the following requirements: (AC1600V/50Hz/1min, Leakage current: 0.5Ma). And there is no flashover or breakdown phenomenon.
Caractéristiques / spécifications techniques
Kntech Stainless steel mechanical hook
Model
Kntech H2
Size
Not specified
Material
Stainless steel
Product Introduction
The hook adopts high-quality materials, the surface copper, nickel, chrome plated, can be a good anti-corrosion, anti external damage, to ensure its excellent performance. Our Hook is suitable for outdoor public telephones.
Standard
GB/15279-94 Automatic telephone technology conditions
YDN109-1998 (chapter 4) IC card telephone technical requirements and test methods
Conditions of using
- Service Environment: -25~55℃
- Relative humidity: 10%~95%
- Atmospheric pressure: 96~108KPa
Main structure parts
- 600 # hanging for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
- Hang tongue for zinc aluminum casting, polishing chromium plating on the surface processing, good appearance
- Selects the high quality of universal switch, on resistance: 0.1, cable length L: 150
Insulation resistance
In the switch between lead wires and metal shell, with TH2681A insulation resistance tester tests (DC 250 V, insulation resistance: 50M)
Withstand voltage
In the switch between lead wires and metal shell, with ET2670A hipot tester tests, shall meet the following requirements: (AC1600V/50Hz/1min, Leakage current: 0.5Ma). And there is no flashover or breakdown phenomenon.
Caractéristiques / spécifications techniques
- Model: H2
- Material: Stainless steel
- Service environment temperature: -25~55℃
- Relative humidity: 10%~95%
- Atmospheric pressure: 96~108KPa
- Main structure parts: 600# zinc aluminum casting hook; zinc aluminum casting hang tongue; universal switch (on resistance 0.1, cable length 150)
- Insulation resistance: 50M (DC 250V)
- Withstand voltage: AC1600V/50Hz/1min, leakage current: 0.5mA
- Standards: GB/15279-94; YDN109-1998 (chapter 4)
