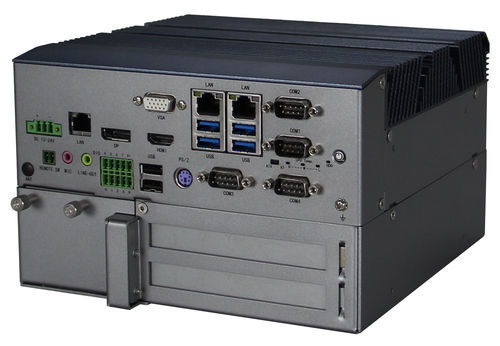

PC embarcado KMDA-3820

Intel® Celeron®Intel® Core i7Intel® Core i5

[Specification] 1.Structure:Aluminum chassis, SGCC frame 2.Color:Silver 3.Net weight:3.65kg 4.Mounting:Desktop mounting 5.Dimension:(W*H*D)200*200*128.3mm 6.Operating temperature: -20°C~70°C – Fanless with wide operating temp.SSD, airflow -10°C~50°C – Fanless with HDD, airflow 7.Storage temperature:-40°C~85°C 8.Storage Humidity:10~90%@40°C, Non-condensing 9.Vibration: 5 grms/5~500Hz/ random/in working(SSD); 1 grms/5~500Hz/random/in working(HDD) 10.Shock: 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD） 11.Certification/EMC:CE/FCC Class A [Key features] Aluminum chassis, fanless design Intel® Skylake-U Celeron/Core I3/I5/I7 CPU 1*DDR4 2133MHz SODIMM, Up to 16GB 1*DP, 1*HDMI, Dual 4K display, 1*VGA 2/3*Gig LAN, 4*USB3.0, 3*USB2.0(one inside) 4*COM, 8-bit DIO, 1*Audio out, 1*MIC 2*PCIe/PCI, 1*F-Mini PCIe 1*F-mSATA, 1*2.5" SATA HDD/SSD driver bay Support iVpro and TPM2.0 DC 12~24V Wide Power Input Have-open L-shaped cover, easy to expand [Applications] AI, Intelligent Transportation(ITS), and Machine Vision. [Certification] CE/FCC Class A
