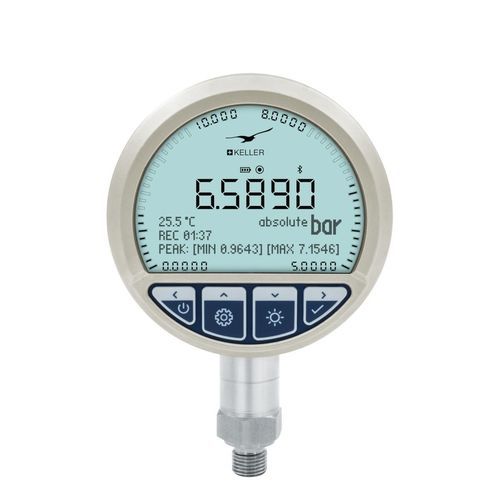

Manómetro absoluto LEO Ultimate

relativodigitalelectrónico

Product Description
The LEO Ultimate digital pressure gauge is a high-precision measuring instrument designed for demanding applications in calibration, service and industry. It combines piezoresistive measurement technology with advanced analysis functions, enabling both absolute and relative pressure measurements in a single device. Thanks to the integrated barometer, it is possible to switch between the two pressure types at any time without the need for additional sensors. The various measurement modes enable the analysis of static and dynamic pressure profiles as well as leakage tests. This range is complemented by a data logger function for recording over extended periods. Parameterisation and data retrieval are carried out via USB-C or wirelessly via Bluetooth. In combination with the PressureSuite software, measurement data can be easily visualised and documented. The robust metal housing with IP67 protection and the easy-to-read display allow the device to be used even under demanding environmental conditions.
Fonctions clés / Caractéristiques principales

• Piezoresistive measurement technology
• Integrated barometer (switch between absolute and relative pressure)
• Measurement modes: static, dynamic, leakage tests
• Data logger for long-term recording
• Interfaces: USB-C (USB 2.0) and Bluetooth BLE
• Robust metal housing with IP67 protection
• Easy-to-read display

Caractéristiques / spécifications techniques

• Pressure ranges: -1...1 to 0…1000 bar / -15…15 bis 0…15000 psi
• Accuracy: ± 0,05 %FS (optional ± 0,01 %FS)
• Total error band: ± 0,05 %FS @ 0…50 °C
• Interfaces: USB 2.0 / Bluetooth BLE
• Special characteristics: High-precision reference instrument
• Protection class: IP67
