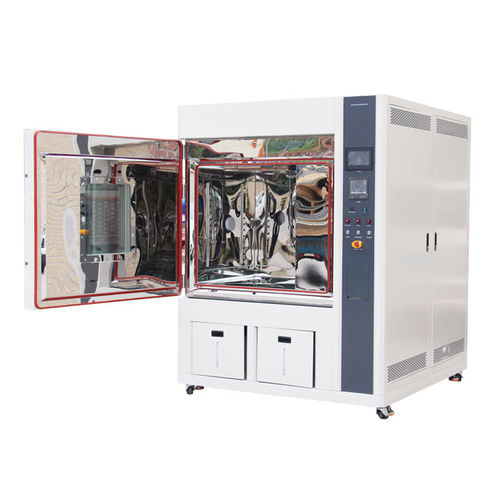

Cámara de pruebas de envejecimiento SM-XD-1000-CA

climáticade humedadde temperatura

Application Using full spectrum xenon arc lamps to reproduce the presence of different environments destructive waves, can provide the appropriate environment analogous to scientific research, product development and quality control and acceleration tests. Xenon lamp chamber can be used to select new materials, improving existing materials, or assessment of material changes in the durability test after the change can be a good simulator under different environmental conditions, the material is exposed to changes in sunlight produced StructureOuter chamber is made of high quality A3 steel plate CNC machine tool processing molding, shell surface spray treatment, thickness=1.2mm. Inner chamber is made of SUS304 stainless steel, thickness=1mm High density glass fiber cotton. Insulation thickness is 100mm The long axis of the fan motor, high temperature stainless steel multivane impeller, to achieve the intensity of convective vertical diffusion loop. Double layer heat resistance material is used to ensure the sealing of the test area. Fixed xenon lamp can test 32 inch products; High quality fixed type PU activity wheel used in the bottom of machine. The observation window use a multi - layer hollow tempered glass, which can clearly observed inner test status. Product functionFull spectrum of xenon lamp. Multiple alternative filtration systems. Water spray function. Relative humidity control. Test box air temperature control system Irregular shape sample holder. cheap but excellent Xenon arc lamp
