Cámara climática

de humedadde temperaturade luz

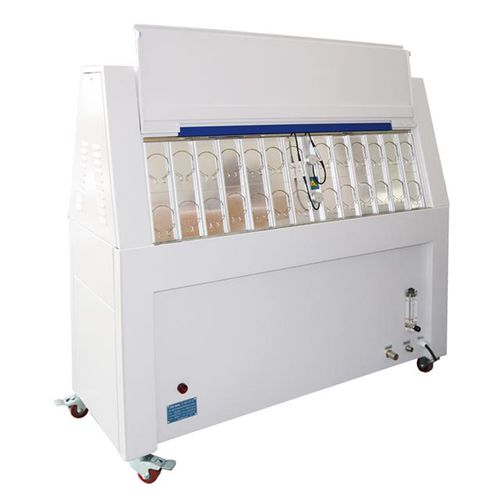

◆ Come with TCP/IP Ethernet interface, the user can tele-control BUV through TCP/IP internet. With this interface, operator only need to set reasonable IP address, then can monitor BUV working status at any place. Even operator is not in his laboratory, he still can run and maintain BUV. Moreover, this function is also convenient for Biuged to help our customers to slove all problems and do some necessary after service. Settle completely users troubles back at home. ◆ Come with a booster pump, even the user’s external water pressure is not enough, BUV still can work normally with this booster pump. ◆ Alarm and protection functions: Low water level protection，over-temperature protection switch, leakage protection, heating overload protection, big error for irradiance, lack. UV lamp weathering test chamber Main Technical Parameters ■ Light Source: UV-A (wave length 340 nm) or UV-B (wave length 313 nm) ; 40W×8 pcs (The normal use-life is 6,000 hours) ■ The range of Irradiance: 0.1 W/m2 ～1.0 W/m2 ■ Temperature Range：Black Panel temperature（BPT）：RT+10℃～80℃ ■ Interior of cabinet：Stainless steel -SUS 304 material ■ Exterior of cabinet：Powder coating on SUS 304 ■ Insolating Area：5,175cm2/828in2 ■ Sample Capacity：48 pieces of standard specimen（75×150mm standard samples） or 15 pieces of 100×300mm ■ Adjustable range for water supply: 0-4LPM ■ Water Consumption：7L/day（for condensation）；4L/minute（for spray） ■ Overall Size：1,360×520×1,310mm（L×W×H） ■ Net Weight：165 kg ■ Total Max. Power：3KW ■ Power：220VAC±10% 50/60Hz；15A ( Max Electric Current )
