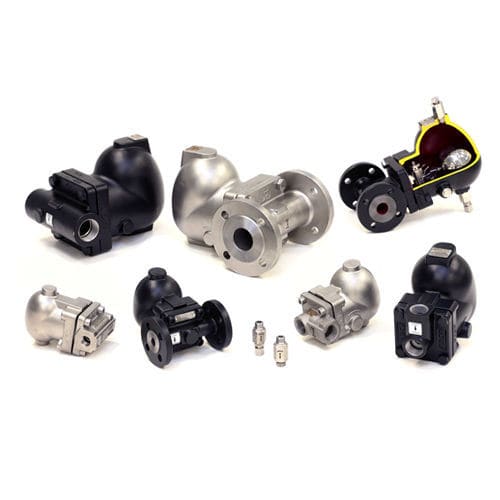

Purgador de vapor ADCA FLT Float And Thermostatic Steam Trap

automáticotermostático

ADCA FLT31 float and thermostatic steam traps with integrated air vent are designed to modulate condensate discharge, ensuring maximum heat transfer from the system. Typical applications include unit heaters, heat exchangers, dryers, jacketed vessels, and other applications where continuous discharge is essential. - Material: Carbon steel - Sizes: 1/2” to 1” – DN 15 to DN 25 - Connections: Female threaded ISO 7 Rp or NPT Flanges EN 1092-1 PN 40 Flanges ASME B16.5 Class 150 or 300 Socket weld (SW) ASME B16.11 - Maximum operating pressure: 32 bar - Maximum operating temperature: 250 ºC - Flow capacity: Up to 710 kg/h Technical Specifications: - Float and thermostatic steam trap with integrated air vent - Designed for modulating condensate discharge - Ensures maximum heat transfer - Applications: unit heaters, heat exchangers, dryers, jacketed vessels, continuous discharge needs
