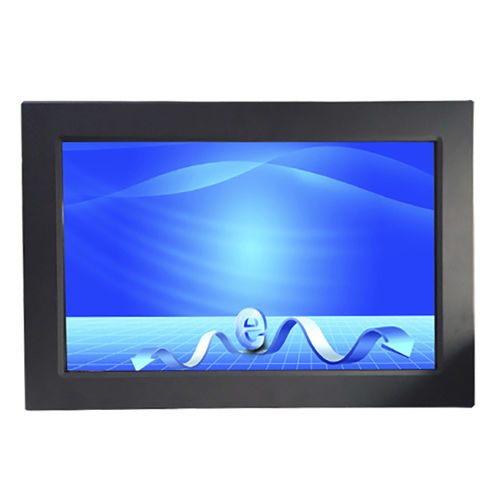

Monitor LCD AMG-22IPPC01T4

con pantalla táctil resistivaretroiluminación LEDcon tecnología capacitiva proyectada

Overview
The industrial grade panel mount LCD monitor AMG-22IPPC01T4 offered by Amongo is ideal for both industrial and commercial industries environments.

Features

• Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation;
• Wide range of touchscreen technologies including PCAP, Resistive, IR etc;
• High-end mechanical design to meet tough environmental conditions and requirements;
• IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
• Customization service available

Specifications
Model Name: AMG-22IPPC01T4
Screen Size: 21.5"
Active Display Area (mm): 473.76(H)x296.1(V)
Pixel Pitch (mm): 0.282(H)x0.282(V)
Display Mode: Normally white
Display Resolution (pixel): 1680X1050
Contrast Ratio: 1000:1
Display Color: 16.7M color
Brightness (CD/㎡): 300
Backlight: LED
Viewing Angles (CR =10): 178Hx178V
Response Time(Typ.Tr+Tf): 8ms
Signal Connector: VGA/DVI
Power Consumption: DC2.0
Dimension(VxHxT): 573.7X400.1X66.9
Operating Temperature: 0～50℃
Storage Temperature: -20～60℃
Relative Humidity: 5(%RH)～90(%RH)
Touch Screen: IR Touch

Caractéristiques / Spécifications techniques

• Model Name: AMG-22IPPC01T4
• Screen Size: 21.5"
• Resolution: 1680X1050
• Active Display Area: 473.76(H)x296.1(V) mm
• Brightness: 300 cd/m²
• Backlight: LED
• Viewing Angle: 178Hx178V
• Response Time: 8ms
• Signal Connector: VGA/DVI
• Touch Screen: IR Touch
• Operating Temperature: 0～50℃
