Monitor LCD AMG-06OPSK01N1

con pantalla táctil resistivaretroiluminación LEDpantalla táctil capacitiva PCAP

Product overview

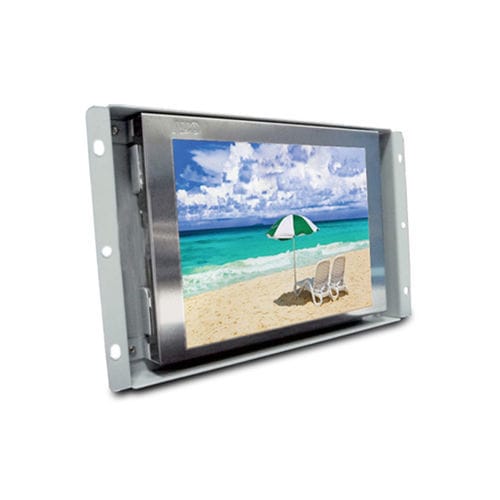

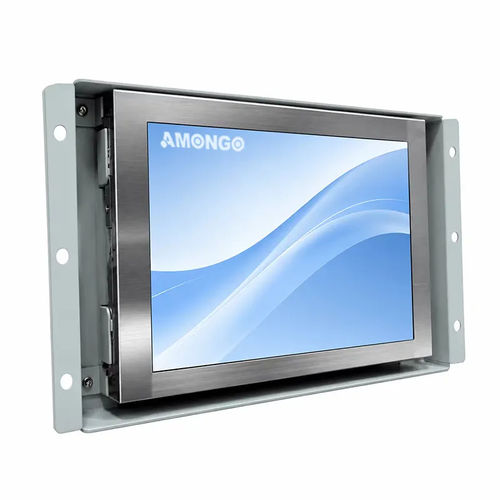

This 5.7-inch Wide Temp Industrial LCD Display.

Key features

• Touchscreen is optional such as PCAP, Resistive etc
• Robust mechanical design with Aluminum for metal IP65/NEMA 4 front panel
• Easy-to-install with rack mounting enclosures
• Customization service available

Typical applications

• Industrial Equipment
• Railway etc

Advantages

• Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components for a reliable 24/7/365 operation
• Touchscreen is optional such as PCAP, Resistive etc
• Robust mechanical design with Aluminum for metal IP65/NEMA 4 front panel to meet tough environmental conditions and requirements
• Easy-to-install with rack mounting enclosures
• Customization service available

Specification
Screen Size: 5.7"
Active Display Area (mm): 115.2(H) x 86.4(V)
Pixel Pitch (mm): 0.18(H) x 0.18(V)
Display Mode: Normally white
Display Resolution (pixel): 640x480
Contrast Ratio: 800:1
Display Color: 16.2M
Brightness: 700nits
Backlight: LED
Viewing Angles (CR=10): 160(H);140(V)
Response Time (Typ. Tr+Tf): 25ms
Touch Screen: Optional
Signal Connector: VGA
Power Input: DC 12V
Operating Temperature: -30～80℃
Storage Temperature: -30～80℃
Relative Humidity: 5(%RH)～90(%RH)

Caractéristiques / spécifications techniques

• Screen Size: 5.7"
• Active Display Area (mm): 115.2(H) x 86.4(V)
• Pixel Pitch (mm): 0.18(H) x 0.18(V)
• Display Mode: Normally white
• Display Resolution (pixel): 640x480
• Contrast Ratio: 800:1
• Display Color: 16.2M
• Brightness: 700nits
• Backlight: LED
• Viewing Angles (CR=10): 160(H);140(V)
• Response Time (Typ. Tr+Tf): 25ms
• Touch Screen: Optional
• Signal Connector: VGA
• Power Input: DC 12V
• Operating Temperature: -30～80℃
• Storage Temperature: -30～80℃
• Relative Humidity: 5(%RH)～90(%RH)
