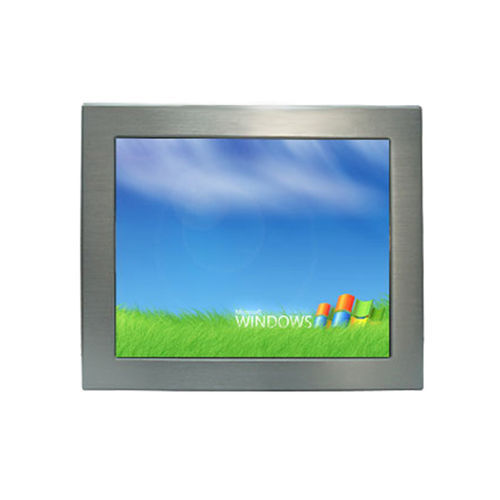

Panel PC con pantalla táctil resistiva AMG-19PPC02T5

de LCDretroiluminación LED19"

Product Overview The 19 inch industrial panel computer AMG-19PPC02T5 from Amongo is designed with below benefits:

Features

• Branded LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight.
• Latest industrial-grade components like high performance processor, hard drives, power supplies for stable function for 24/7 long time working.
• Flexible touchscreen options like PCAP, Resistive, IR etc.
• Rugged shell design with aluminum bezel for front IP65 waterproof.
• Standard mounting like panel mount or embedded mount.
• Rigorous quality control to ensure fully function after delivery.

Specifications Model Name: AMG-19PPC02T5
CPU: Intel® Bay Trail J1900 Mini-ITX (2GHz)
Memory: DDR3L 1333/1600MHz 2GB
HDD: 60GB (optional)
COM ports: 1 x COM port
PS/2 port: NA
VGA port: 1 x VGA port
HDMI port: 1 x HDMI port
USB ports: Default 2 x USB 2.0
Ethernet ports: 1 x 10/100/1000BASE-T Gigabit Ethernet
Audio: Line-out, Mic-in
Display Size (Diagonal): 19"
Active Display Area (mm): 376.32 (H) x 301.06 (V)
Max Resolution: 1280 x 1024
Support Color: 16.7M
Brightness (CD/㎡): 250
Contrast Ratio: 1000:1
Pixel Pitch (mm): 0.264 (H) x 0.264 (V)
Viewing Angle: 170 (H); 160 (V)
Response Time (Typ. Tr+Tf): 5ms
Backlight: LED
Type: Resistive Touchscreen
Use connector: 4pin USB2.0
Input Voltage: AC 90-264V 4A 47–63Hz
Output Rating: 60W (max)
Ouput Voltage: +12V @5A
Dimension (V x H x T): 474.6 x 399.6 x 90.36 (mm)
Operating Temperature: 0–50℃
Storage Temperature: -20–60℃
Relative Humidity: 5% RH – 90% RH

Caractéristiques / spécifications techniques

• Modèle: AMG-19PPC02T5
• Processeur: Intel® Bay Trail J1900 Mini-ITX (2GHz)
• Mémoire: DDR3L 1333/1600MHz 2GB
• Stockage: 60GB (optionnel)
• Taille d'écran: 19" (Active area 376.32 x 301.06 mm)
• Résolution maximale: 1280 x 1024
• Luminosité: 250 cd/㎡
• Contraste: 1000:1
• Type de tactile: Résistif (connecteur 4pin USB2.0)
• Ports vidéo: 1 x VGA, 1 x HDMI
• Ports USB: 2 x USB 2.0 (par défaut)
• Réseau: 1 x Gigabit Ethernet
• Alimentation: AC 90-264V (entrée), sortie +12V @5A, 60W max
• Dimensions: 474.6 x 399.6 x 90.36 mm
• Température de fonctionnement: 0–50℃; stockage: -20–60℃
• Humidité relative: 5%–90% RH
