Panel PC de LCD AMG-15PPC01NC

retroiluminación LED15"Intel® Atom N2600

Product Overview

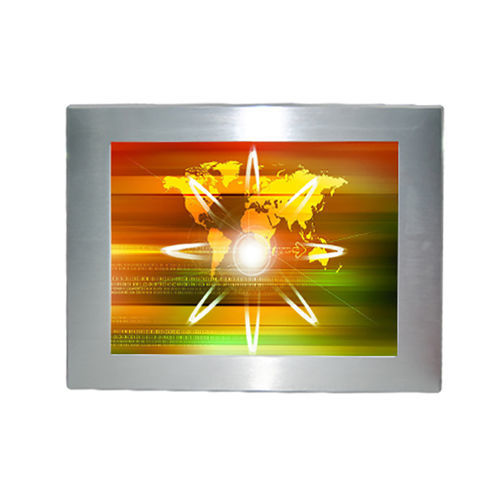

The 15 inch industrial panel computer AMG-15PPC01NC from Amongo is designed with below benefits:

• Branded LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
• Industrial-grade components like high performance processor, hard drives, power supplies for stable function in continuously operation;
• Rugged enclosure design with front IP65 aluminum bezel;
• Standard mounting like panel mount or embedded mount;
• Meet with requested sustainability tests and reliability test to survive in the toughest application environment

Specifications (table)
Model Name: AMG-15PPC01NC
CPU: Intel ATOM N2600 Dual core 1.6GHz
Memory: RAM 2GB.DDR3 SO-DIMM
HDD: HDD 320 G 5400 RPM.2.5 SATA
HDMI port: 1xHDMI port
COM ports: Default x 4 COM
USB 2.0 ports: Default x 3 USB 2.0
Ethernet ports: 1x10/100/1000base-T Gigabit Ethernet
Audio: Line-out,mic-in
Display Size(Diagonal): 15"
Active Display Area(mm): 304.128(H)x228.096(V)
Max Resolution: 1024x768
Support Color: 16.2M
Luminance(CD/M ): 250
Contrast Ratio: 700:1
Pixel Pitch(mm): 0.297(H)x0.297(V)
Viewing Angle: 160(H);140(V)
Response Time(Typ.Tr+Tf): 8ms
Backlight: LED
Type: NA
Use connector: NA
Input Voltage: AC 90-264V 4A 47～63Hz
Output Rating: 60W(max)
Output Voltage: [email protected];
Dimension(VxHxT): 410.4x317.4x83
Operating Temperature: -30～85℃
Storage Temperature: -30～85℃
Relative Humidity: 5[%RH]～90[%RH]

Caractéristiques / spécifications techniques

• Modèle: AMG-15PPC01NC
• Processeur: Intel ATOM N2600 Dual core 1.6GHz
• Mémoire: RAM 2GB DDR3 SO-DIMM
• Disque dur: 320 GB 5400 RPM, 2.5" SATA
• Ports HDMI: 1x HDMI
• Ports COM: 4 (par défaut)
• Ports USB 2.0: 3 (par défaut)
• Ethernet: 1x 10/100/1000base-T Gigabit
• Audio: Line-out, mic-in
• Taille d'affichage: 15" (diagonale)
• Zone active (mm): 304.128(H) x 228.096(V)
• Résolution max: 1024 x 768
• Couleurs supportées: 16.2M
• Luminosité: 250 cd/m²
• Contraste: 700:1
• Pitch pixels: 0.297(H) x 0.297(V) mm
• Angles de vue: 160° (H) / 140° (V)
• Temps de réponse: 8 ms
• Rétro-éclairage: LED
• Tension d'entrée: AC 90-264V 4A 47–63Hz
• Puissance de sortie: 60W (max)
• Tension de sortie: DC 12V @ 2.5A
• Dimensions (V x H x T): 410.4 x 317.4 x 83 mm
• Température de fonctionnement: -30 ～ 85℃
• Température de stockage: -30 ～ 85℃
• Humidité relative: 5% RH ～ 90% RH
