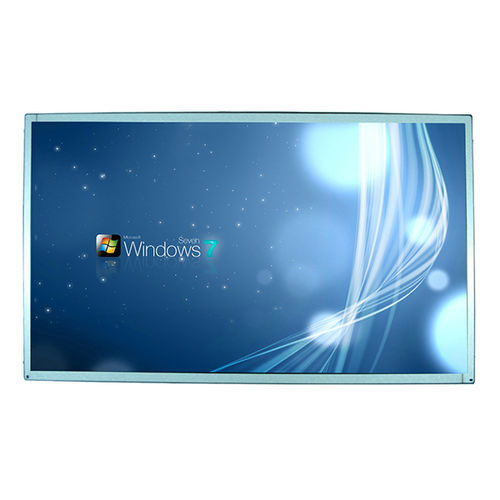

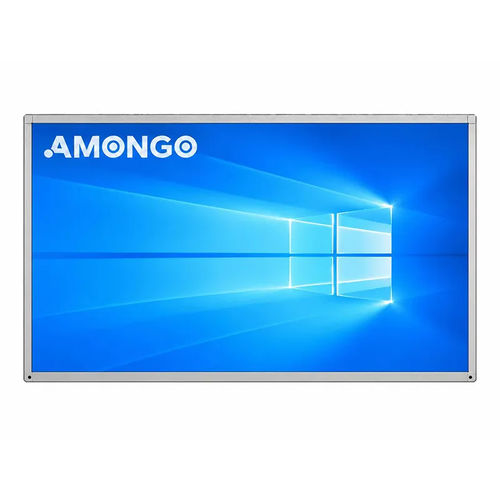

Monitor LCD AMG-21OPHA01N1

retroiluminación LEDpara punto de ventade visualización

Présentation

• AMG-21OPHA01N1
• 1920x1080 pixels
• Brightness: 250 nits
• No Touch
• For: ATM/Kiosk

Avantages

• Branded LCD panels with perfect image quality and wide viewing angles
• Built with industrial-grade components for a reliable 24/7/365 operation
• LED backlight for low power consumption
• Various touchscreen options like PCAP, Resistive, IR, SAW etc.
• High-end mechanical design to meet tough environmental conditions and requirements
• Customization solution available

Tableau des spécifications
Model Name: AMG-21OPHA01N1
Screen Size: 21.5"
Active Display Area (mm): 476.64(H) x 268.11(V)
Pixel Pitch (mm): 0.294(H) x 0.294 (V)
Display Mode: Normally White
Display Resolution (pixel): 1920x1080
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness (CD/㎡): 250
Backlight: LED
Viewing Angles (CR =10): 178(H);178(V)
Response Time(Typ.Tr+Tf): 5ms
Signal Connector: VGA/DVI
Power Consumption: DC 12V
Dimension(VxHxT): 498x294.6x28
Operating Temperature: 0～50℃
Storage Temperature: -20～60℃
Relative Humidity: 5(%RH)～90(%RH)
Touch Screen: Optional

Caractéristiques / spécifications techniques

• Model Name: AMG-21OPHA01N1
• Screen Size: 21.5"
• Resolution: 1920x1080
• Brightness: 250 CD/㎡
• Backlight: LED
• Contrast Ratio: 1000:1
• Display Color: 16.7M
• Viewing Angles: 178°H / 178°V
• Response Time: 5 ms
• Signal Connector: VGA / DVI
• Power: DC 12V
• Dimensions (VxHxT): 498 x 294.6 x 28 mm
• Operating Temperature: 0～50℃
• Storage Temperature: -20～60℃
• Relative Humidity: 5%～90% RH
• Touchscreen: Optional (PCAP / Resistive / IR / SAW)
