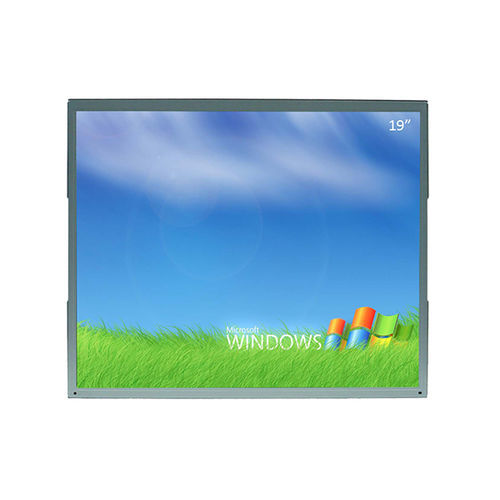

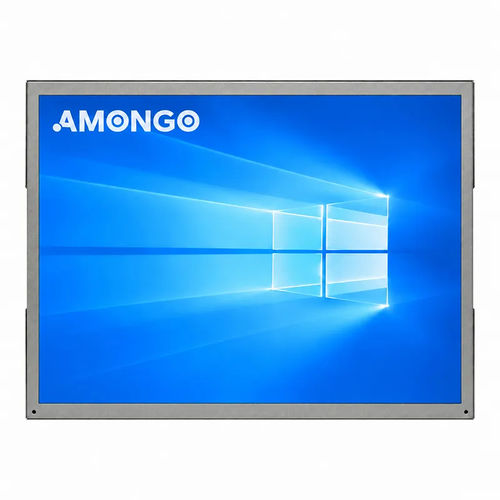

Monitor TFT-LCD AMG-19OPHA02N2

con pantalla táctil multipuntoscon pantalla táctil resistivaretroiluminación LED

Overview
This 19-inch compact LCD module features multiple interfaces and excellent anti-interference capability.

Key features

• LED backlight design with low power consumption
• Multiple touch screen options and premium mechanical structure
• Customization services available
• Vibration resistance: 1.5G

Typical applications

• ATM
• Smart safe
• Parking toll terminal

Specification
Screen Size: 19"
Active Display Area(mm): 376.32 (H) x 301.06 (V)
Pixel Pitch(mm): 0.294 (H) x 0.294 (V)
Display Mode: Normally white
Display Resolution(pixel): 1280x1024
Contrast Ratio: 1000:1
Display Color: 16.7M
Brightness: 250 nits
Backlight: LED
Viewing Angles(CR=10): 170 (H); 160 (V)
Response Time(Typ.Tr+Tf): 5 ms
Touch Screen: Resistive
Signal Connector: VGA/DVI
Power Input: DC 12V
Operating Temperature: 0～50℃
Storage Temperature: -20～60℃
Relative Humidity: 5(%RH)～90(%RH)

Caractéristiques / Spécifications techniques

• Screen Size: 19"
• Active Display Area: 376.32 (H) x 301.06 (V) mm
• Pixel Pitch: 0.294 x 0.294 mm
• Resolution: 1280 x 1024
• Contrast Ratio: 1000:1
• Colors: 16.7M
• Brightness: 250 nits
• Backlight: LED
• Viewing Angles: 170° (H) / 160° (V)
• Response Time: 5 ms
• Touch Options: Resistive (multiple touch options available)
• Signal Connector: VGA / DVI
• Power Input: DC 12V
• Operating Temperature: 0 to 50 ℃
• Storage Temperature: -20 to 60 ℃
• Relative Humidity: 5% to 90% RH
• Vibration Resistance: 1.5G
