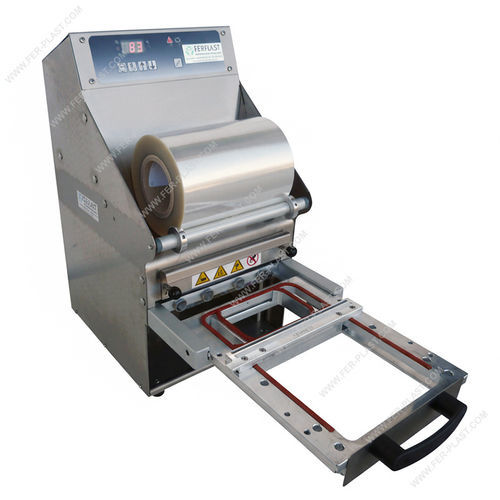

Selladora de aire caliente FP SM-A series

semiautomáticapara alimentospara termostatos

SEMIAUTOMATIC TRAY SEALERS FOR CLOSING PREFORMED TRAYS - FP SM-A SERIES The FP SM-A semi-automatic tray sealers are suitable for packaging food in preformed trays with plastic sealing film in PP, PET, PS, PE. They are ideal for delicatessen shops, hypermarkets, grocery stores, craft workshops, and catering. All machines are made of stainless steel and anodized aluminum. The work process is timed and electrically controlled; functions are managed via the digital panel. Standard machines operate with a 220 V power supply; models with a 120 V power supply are available on request. MODELS AND APPROXIMATE PRICES The 3 models listed on this web page can seal plastic film on various tray sizes, depending on the installed mold. The indicated price includes the tray sealer and 1 standard fixed mold with 1 impression. Upon request, we can send you a quote for the tray sealer equipped with special molds and various accessories. OPERATION: The operator must place the tray in the mold and push the mold into the tray sealer. Subsequently, the machine will automatically seal the film onto the tray. An acoustic signal alerts the operator at the end of the cycle, and once the mold is removed, it will be possible to extract the sealed trays. In this series of tray sealers, the film remains sealed on the tray but is not cut. If a film wider than the tray is used, the operator must finish the job by manually trimming the film. AVAILABLE MODELS: FP SM-101A: semi-automatic tray sealer for trays with maximum dimensions 205x150x100h mm FP SM-102A: semi-automatic tray sealer for trays with maximum dimensions 260x195x155h mm FP SM-105A: semi-automatic tray sealer for trays with maximum dimensions 370x280x155h mm Considering the above measurements, it is possible to make molds for multiple trays. For example, in the FPSM105A model, it is possible to create up to 4/6 holes in the mold and seal 4/6 trays simultaneously. MODEL FP SM-101A FP SM-102A FP SM-105A Dimensions 240x390 h. 500 mm 295x450 h. 555 mm 460x510 h. 555 mm Voltage 220 V 220 V 220 V Power 550 W 700 W 1400 W Weight 20 Kg 25 Kg 35 Kg Max. reel dimensions L=150 diameter 160 mm L=210 diameter 200 mm L=380 diameter 200 mm Max. tray dimensions 205x150 mm 260x195 mm 370x280 mm Max. tray depth 100 mm 155 mm 155 mm Customizable welding programs 9 9 9 Cycles per minute 6-8 6-8 6-8 Machine features: Made for packaging in preformed trays of different sizes with compatible sealing films. Manufactured in stainless steel and anodized aluminum. Teflon-coated aluminum sealing plate. Nine storable welding programs. Electronic control of the sealing plate temperature (0-200 °C). Partial and total cycle counter. Acoustic and light warning signal at the end of the cycle. Automatic motorized sealing, powered only by electricity. The sealing cycle is automatically activated when the mold is fully inserted. Quick and easy format change. The coating film reel is placed on the front of the machine and unwinding is done automatically during manual mold insertion. USABLE MOLDS: Manual tray sealers can use two different types of molds, "adjustable" and fixed die-cut molds: FPSM-101A FPSM-102A FPSM-105A - Adjustable type 1- Fixed 1 cavity- Fixed 2 cavities - Adjustable type 1- Adjustable type 2- Adjustable Plus type- Fixed 1 cavity- Fixed 2 cavities- Fixed 4 cavities - Adjustable double type 1 - 2 trays- Adjustable type 2- Adjustable Plus type- Fixed 1 cavity- Fixed 2 cavities- Fixed 4 cavities- Fixed 6 cavities While "fixed molds" are made especially according to the tray size, adjustable molds are adaptable to different tray sizes. The "adjustable" molds are available in the following types: Type 1: suitable for sealing trays with sizes mm. 190x137 - 137x125 - 137x95 Type 2: suitable for sealing trays with sizes mm. 260x190 - 230x190 - 190x137 - 137x95 Plus type: suitable for sealing trays with sizes mm. 260x190 - 230x190 - 190x137 - 137x125 - 137x95 Double type 1: suitable for sealing 2 trays with sizes mm. 190x137 - 137x125 - 137x95 FILM FOR TRAY SEALERS The film for tray sealing machines is available in the following materials: PET-PP: for polypropylene trays for microwave cooking PET-PE: for polypropylene and cardboard trays Melinex: for cardboard trays for traditional oven and microwave cooking OPTIONAL Perforation unit: ideal for creating a series of holes in the film, allowing the product to breathe inside the tray Front cutter to separate the central film between two trays (only FP SM-102A/FP SM-105A models) Film protector to protect the film roll from dirt and impurities (only FP SM-102A model) Carbon-nitrogen washing system (only FP SM-102A/FP SM-105A models) The FP SM-102/105A models can be equipped with the tray washing system. This option introduces nitrogen/carbon into the tank, washes it, and increases the product's storage times. Technical specifications: Model: FP SM-101A, FP SM-102A, FP SM-105A Dimensions: 240x390 h. 500 mm (FP SM-101A), 295x450 h. 555 mm (FP SM-102A), 460x510 h. 555 mm (FP SM-105A) Voltage: 220 V Power: 550 W (FP SM-101A), 700 W (FP SM-102A), 1400 W (FP SM-105A) Weight: 20 Kg (FP SM-101A), 25 Kg (FP SM-102A), 35 Kg (FP SM-105A) Max. reel dimensions: L=150 diameter 160 mm (FP SM-101A), L=210 diameter 200 mm (FP SM-102A), L=380 diameter 200 mm (FP SM-105A) Max. tray dimensions: 205x150 mm (FP SM-101A), 260x195 mm (FP SM-102A), 370x280 mm (FP SM-105A) Max. tray depth: 100 mm (FP SM-101A), 155 mm (FP SM-102A/FP SM-105A) Customizable welding programs: 9 Cycles per minute: 6-8
