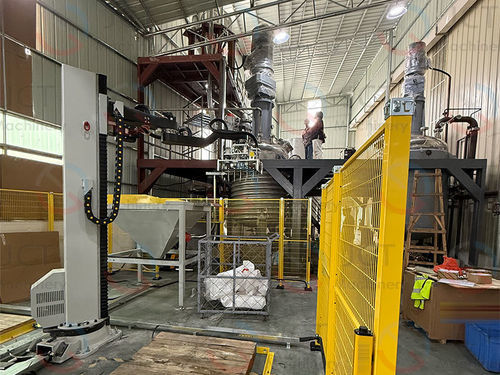

Robot de alimentación

articulado6 ejesde manipulación

System Components of the Robotic Arm Feeding System1. Robotic Arm: The multi-joint structure (usually six axes) supports multi-degree-of-freedom movement, enabling precise gripping and feeding. An optional visual positioning system can automatically identify the location and type of material.2. End Effector (Gripper/Suction Cup): Customizable design based on packaging type (bags, drums, boxes, pallets, etc.). Optional weighing module for precise feeding control.3. Feeding Port and Sealing Device: The feeding port is generally equipped with a dust cover or negative pressure suction system to reduce dust leakage. Can be linked with equipment such as reactors, sigma mixers, triple-shaft mixers, and double planetary mixers.4. Intelligent Control System (PLC+HMI): Centralized management of robotic arm movements, feeding sequence, and weighing signals. Can be integrated with MES/ERP systems for automatic recipe retrieval and production record tracking.Functions and Advantages of the Robotic Arm Feeding System1. Automatic feeding, reducing manual errors: The robotic arm automatically picks up raw materials according to recipe instructions, achieving quantitative feeding and precise mixing ratio control.2. Enhanced safety: Prevents human contact with flammable, toxic, or high-temperature materials, ensuring safe operation.3. Improved production efficiency: Enables continuous feeding and collaboration between multiple stations, reducing waiting time and suitable for continuous production lines.4. Reduced labor costs: One robotic arm can replace multiple human workers with greater stability.5. Data traceability: Each feeding process is automatically recorded, ensuring transparent and standardized production.6. Strong compatibility and flexible implementation: Can be integrated into existing production lines without major modifications.Operating Principle of the Robotic Arm Feeding System1. Material Identification and Positioning: The robotic arm, working with a visual recognition system (or preset coordinates), identifies the location of the drum, bag, or box of raw material to be fed. The system automatically determines the material type and batch number to prevent incorrect feeding.2. Automatic Gripping and Handling: The robotic arm grips the raw material using an end effector (suction cup or gripper). For bagged powders, a vacuum suction cup can be used; for barrels or solid blocks, a custom robotic gripper can be used.3. Weighing Control: The robotic arm or feeding port is equipped with a weighing sensor to monitor weight in real time during feeding. The control system automatically stops or adjusts the feeding amount according to the recipe settings, ensuring a mixing ratio accuracy of ±0.5%.4. Automatic Feeding: The robotic arm feeds the material to the designated equipment. The feeding port can be equipped with a sealed cover and dust removal device to prevent dust leakage and raw material waste.5. Data Recording and Traceability: The robotic arm feeding system automatically records information such as material name, weight, batch, and feeding time. This data can be uploaded to the MES or ERP system, enabling fully traceable production management.6. Next Cycle: The robotic arm feeding system automatically requests the next raw material according to the production recipe list and executes the feeding task in a repetitive cycle.RecommendationJCT recommends customers use the automated robotic arm feeding system because it can help factories operate more efficiently, safely, and standardized, and is an indispensable part of the smart factory.Technical Specifications / FeaturesMulti-joint robotic arm (typically six axes) for high flexibilityOptional visual positioning and weighing modulesCustomizable end effectors for various packaging typesCentralized intelligent control (PLC+HMI)Integration with MES/ERP systemsAutomatic data recording and traceabilityHigh accuracy: ±0.5% mixing ratioDust control and safety featuresSuitable for continuous and batch production lines
