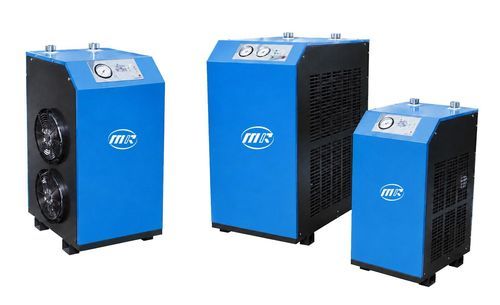

Secador de aire comprimido por refrigeración KD series

compacto

Resumen del producto
La serie KD Compact proporciona eliminación de condensado para flujos de aire comprimido de bajos a medios. Solo se publican los datos confirmados de caudal, potencia, conexión, dimensiones y peso; los límites de presión y temperatura de entrada de la serie BD no se aplican a estos modelos.

Funcionamiento y características

• Las subseries KDL y KDH se presentan en tablas separadas para evitar ambigüedad entre modelos y especificaciones.
• Rango de conexión BSP: 1/2–2 in.

Especificaciones técnicas principales

• Rango de caudal nominal: 0.7–13.5 m³/min
• Rango de conexión: BSP 1/2–2 in
• Subseries: KDL / KDH

Modelos y especificaciones — Subserie compacta KDL (tabla)
Model | Flow (m³/min) | Flow (m³/h) | Flow (CFM) | Power (kW) | Connection | Dimensions L×W×H (mm) | Weight (kg)
KDL-5F | 0.7 | 42 | 25 | 0.45 | 1/2 in | 500 × 415 × 640 | 30
KDL-10F | 1.6 | 96 | 56 | 0.47 | 1 in | 500 × 415 × 680 | 45
KDL-20F | 2.6 | 156 | 92 | 0.85 | 1 in | 630 × 450 × 790 | 50
KDL-30F | 3.8 | 228 | 134 | 1.04 | 1 in | 630 × 450 × 790 | 55
KDL-50F | 6.0 | 360 | 212 | 1.65 | 1-1/2 in | 770 × 530 × 890 | 70
KDL-60F | 7.0 | 420 | 247 | 1.65 | 1-1/2 in | 820 × 530 × 890 | 80
KDL-75F | 8.5 | 510 | 300 | 1.67 | 1-1/2 in | 870 × 580 × 890 | 90
KDL-100F | 11.5 | 690 | 406 | 2.05 | 2 in | 900 × 580 × 870 | 120
KDL-120F | 13.5 | 810 | 476 | 2.30 | 2 in | 950 × 730 × 1130 | 140

Modelos y especificaciones — Subserie compacta KDH (tabla)
Model | Flow (m³/min) | Flow (m³/h) | Flow (CFM) | Power (kW) | Connection | Dimensions L×W×H (mm) | Weight (kg)
KDH-5F | 0.7 | 42 | 25 | 0.47 | 1/2 in | 500 × 415 × 830 | 35
KDH-10F | 1.6 | 96 | 56 | 0.53 | 1 in | 500 × 415 × 880 | 50
KDH-20F | 2.6 | 156 | 92 | 0.95 | 1 in | 630 × 450 × 1010 | 55
KDH-30F | 3.8 | 228 | 134 | 1.16 | 1 in | 630 × 450 × 1010 | 60
KDH-50F | 6.0 | 360 | 212 | 1.65 | 1-1/2 in | 770 × 530 × 1070 | 70
KDH-60F | 7.0 | 420 | 247 | 1.65 | 1-1/2 in | 820 × 530 × 1070 | 85
KDH-75F | 8.5 | 510 | 300 | 1.80 | 1-1/2 in | 870 × 580 × 1180 | 110
KDH-100F | 11.5 | 690 | 406 | 2.30 | 2 in | 1180 × 580 × 1110 | 150
KDH-120F | 13.5 | 810 | 476 | 2.52 | 2 in | 1250 × 730 × 1230 | 190

Aplicaciones
Pretratamiento del aire comprimido dentro de los rangos de caudal y conexión publicados.

Productos relacionados

• BD Series
• KD Medium Air-Cooled Series
• KDL/KDH Water-Cooled Series

Especificaciones técnicas (lista compacta)

• Rango de caudal nominal: 0.7–13.5 m³/min
• Rango de conexión: BSP 1/2–2 in
• Subseries: KDL / KDH
• KDL-5F — Flow: 0.7 m³/min; 42 m³/h; 25 CFM; Power: 0.45 kW; Connection: 1/2 in; Dimensions: 500 × 415 × 640 mm; Weight: 30 kg
• KDL-10F — Flow: 1.6 m³/min; 96 m³/h; 56 CFM; Power: 0.47 kW; Connection: 1 in; Dimensions: 500 × 415 × 680 mm; Weight: 45 kg
• KDL-20F — Flow: 2.6 m³/min; 156 m³/h; 92 CFM; Power: 0.85 kW; Connection: 1 in; Dimensions: 630 × 450 × 790 mm; Weight: 50 kg
• KDL-30F — Flow: 3.8 m³/min; 228 m³/h; 134 CFM; Power: 1.04 kW; Connection: 1 in; Dimensions: 630 × 450 × 790 mm; Weight: 55 kg
• KDL-50F — Flow: 6.0 m³/min; 360 m³/h; 212 CFM; Power: 1.65 kW; Connection: 1-1/2 in; Dimensions: 770 × 530 × 890 mm; Weight: 70 kg
• KDL-60F — Flow: 7.0 m³/min; 420 m³/h; 247 CFM; Power: 1.65 kW; Connection: 1-1/2 in; Dimensions: 820 × 530 × 890 mm; Weight: 80 kg
• KDL-75F — Flow: 8.5 m³/min; 510 m³/h; 300 CFM; Power: 1.67 kW; Connection: 1-1/2 in; Dimensions: 870 × 580 × 890 mm; Weight: 90 kg
• KDL-100F — Flow: 11.5 m³/min; 690 m³/h; 406 CFM; Power: 2.05 kW; Connection: 2 in; Dimensions: 900 × 580 × 870 mm; Weight: 120 kg
• KDL-120F — Flow: 13.5 m³/min; 810 m³/h; 476 CFM; Power: 2.30 kW; Connection: 2 in; Dimensions: 950 × 730 × 1130 mm; Weight: 140 kg
• KDH-5F — Flow: 0.7 m³/min; 42 m³/h; 25 CFM; Power: 0.47 kW; Connection: 1/2 in; Dimensions: 500 × 415 × 830 mm; Weight: 35 kg
• KDH-10F — Flow: 1.6 m³/min; 96 m³/h; 56 CFM; Power: 0.53 kW; Connection: 1 in; Dimensions: 500 × 415 × 880 mm; Weight: 50 kg
• KDH-20F — Flow: 2.6 m³/min; 156 m³/h; 92 CFM; Power: 0.95 kW; Connection: 1 in; Dimensions: 630 × 450 × 1010 mm; Weight: 55 kg
• KDH-30F — Flow: 3.8 m³/min; 228 m³/h; 134 CFM; Power: 1.16 kW; Connection: 1 in; Dimensions: 630 × 450 × 1010 mm; Weight: 60 kg
• KDH-50F — Flow: 6.0 m³/min; 360 m³/h; 212 CFM; Power: 1.65 kW; Connection: 1-1/2 in; Dimensions: 770 × 530 × 1070 mm; Weight: 70 kg
• KDH-60F — Flow: 7.0 m³/min; 420 m³/h; 247 CFM; Power: 1.65 kW; Connection: 1-1/2 in; Dimensions: 820 × 530 × 1070 mm; Weight: 85 kg
• KDH-75F — Flow: 8.5 m³/min; 510 m³/h; 300 CFM; Power: 1.80 kW; Connection: 1-1/2 in; Dimensions: 870 × 580 × 1180 mm; Weight: 110 kg
• KDH-100F — Flow: 11.5 m³/min; 690 m³/h; 406 CFM; Power: 2.30 kW; Connection: 2 in; Dimensions: 1180 × 580 × 1110 mm; Weight: 150 kg
• KDH-120F — Flow: 13.5 m³/min; 810 m³/h; 476 CFM; Power: 2.52 kW; Connection: 2 in; Dimensions: 1250 × 730 × 1230 mm; Weight: 190 kg
