Altavoz de techo KNL9-A-6W

ignífugopara edificio comercial

Description

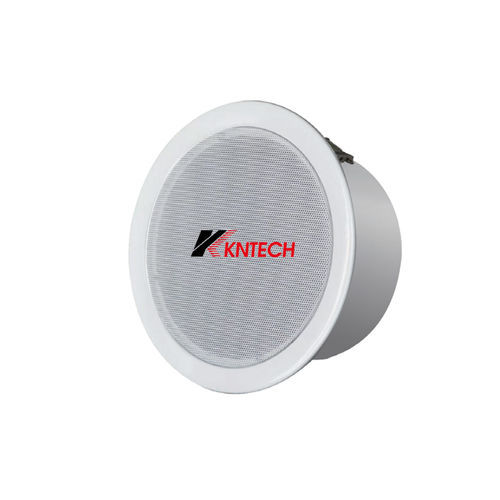

The Fireproof Ceiling Speaker is a fire-rated ceiling loudspeaker designed for background music and voice paging in indoor public spaces. It features a full-range cone-type transducer and a factory-mounted transformer for use on 100V or 70V lines, with selectable power taps and push-in connectors for easy wiring.

Basic Information
Model: KNL9-A-6W
Size: 197*165*98mm
Material: Metal & Fire Rated Metal Rear Cover

Key Features

• Single 12 cm (5") full-range cone-type transducer providing a smooth frequency response of 80 Hz to 20 kHz (measured on axis).
• Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with 1 watt input.
• Factory-mounted transformer with selectable power tappings: for 100V line - 6W, 3W, 1.5W and 0.8W; for 70V line - 3W, 1.5W, 0.8W and 0.4W.
• Push-in-type connectors for quick, easy cable connection and for bridge wiring when necessary.

Applications

• Conference rooms
• Cafes
• Churches
• Background music systems
• Entertainment venues
• Home theaters

Caractéristiques / Spécifications techniques

• Model: KNL9-A-6W
• Diameter of transducer: 12 cm (5") full-range cone
• Frequency response: 80 Hz – 20 kHz (on axis)
• SPL: 90 dB @ 1 m, 1 W
• Power output (nominal): 6 W (100V line), 3 W (70V line)
• Transformer power tappings (100V): 6W, 3W, 1.5W, 0.8W
• Transformer power tappings (70V): 3W, 1.5W, 0.8W, 0.4W
• Connectors: Push-in type (supports bridge wiring)
• Dimensions: 197 x 165 x 98 mm
• Material: Metal with fire-rated metal rear cover
