Claxon de alarma antiexplosiones KNSIPLB-Ex15

de bocinapara entornos difícilesde interior/de exterior

Overview

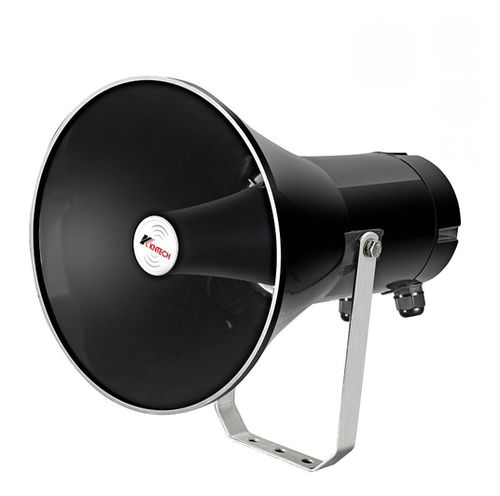

Explosion-proof IP Network Horn Speaker KNSIPLB-Ex15. The KNSIPLB-Ex15 is a simple-to-install explosion-proof loudspeaker providing clear, long-range speech for remote speaking in video surveillance and public address applications. It supports SIP (Session Initiation Protocol) for integration with VoIP telephone systems, includes a built-in amplifier, and supports Power over Ethernet (PoE) for single-cable network communication and power. The unit can play pre-recorded audio files and allows user-uploaded audio, enabling announcements from anywhere with network connectivity. Despite low power consumption the speaker can deliver sound pressure exceeding 92 dB. The product is a standalone unit, offering flexible, scalable and cost-effective system design.

Model / Basic info
Model: KNSIPLB-Ex15
Size: 413*254*277 MM
Material: Anti-static Polyamide (Black)

Features

• Explosion-proof speaker design, certified by ATEX standard
• Material/Colour: Anti-static Polyamide / Black
• Waterproof and dust proof rating: IP66
• Service temperature range: -40 °C to +55 °C
• 360° lossless broadcast capability
• IP network horn speaker: explosion-proof and waterproof
• Suitable for public address and paging applications
• Intended for hazardous environments: petroleum, metallurgy, chemical industry, offshore oil, nuclear power, shipbuilding, tunnels, etc.

Type description
The appearance of the speaker mould is the same across variants; differences relate to whether a built-in transformer is included or not.

Installation / System
Built-in amplifier, supports PoE allowing communication and power over a single network cable. Designed for easy installation as a standalone network device.

Product packing
Unit size: 250 (∅) * 352 (L) mm
Unit gross weight (G.W.): 3.7 kg
1 pcs in an inside box. Box size: 270 x 270 x 390 mm. G.W.: 3.7 kg
2 pcs in a carton (CTN) box. CTN box size: 570 x 290 x 420 mm. G.W.: 7.8 kg

Application
Designed for hazardous-area public address and paging, video surveillance remote speaking, and other projects requiring explosion-proof grade speakers in oil & gas, chemical, metallurgy, shipbuilding, tunnels, nuclear power and similar environments.

Caractéristiques / Spécifications techniques

• Model: KNSIPLB-Ex15
• Overall size: 413 x 254 x 277 mm
• Housing material: Anti-static Polyamide (Black)
• Ingress protection: IP66 (waterproof, dust proof)
• Operating temperature: -40 °C to +55 °C
• Sound pressure level: >92 dB (high sound pressure)
• Network protocol: SIP (VoIP) compatible
• Power: Supports Power over Ethernet (PoE)
• Amplifier: Built-in amplifier (standalone operation)
• Audio: Comes with pre-recorded audio files; user can upload custom audio
• Variants: Available with or without built-in transformer (appearance similar)
• Packing details: see product packing block above
