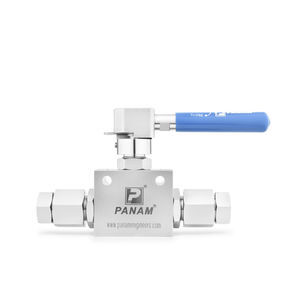

Válvula de aguja PNV series

de palancamacho-hembrahembra

Descripción
Las válvulas de aguja Panam serie HP en SS 316 están disponibles en cinco series de presión (HP, HP1, HP2, HP3, HP6) para sistemas de fluidos y gases a alta presión. Opciones de rosca: NPT, MP Cone y HP Cone. Configuraciones de cuerpo: recta, ángulo, 3 vías y colector de 2 tallos; asientos reemplazables para mantenimiento.

Series

• HP
• HP1
• HP2
• HP3
• HP6

Material

• SS 316

Clasificación de presión

• 10.000 psi (HP)
• 15.000 psi (HP1)
• 20.000 psi (HP2)
• 30.000 psi (HP3)
• 60.000 psi (HP6)

Tipos de rosca / conexión

• NPT
• MP Cone
• HP Cone

Configuraciones

• Recta
• Ángulo
• 3 vías (2 entradas / 2 salidas)
• Colector de 2 tallos
• Asiento reemplazable

Tabla de producto (Referencia | Serie | Presión | Tamaño | Tipo de conexión | Configuración)
Part Number | Series | Pressure | Size | Connection Type | Configuration
PNV-HP-S-2NF | HP | 10,000 psi | 1/8" | NPT Female to Female | Straight
PNV-HP-S-4NF | HP | 10,000 psi | 1/4" | NPT Female to Female | Straight
PNV-HP-S-6NF | HP | 10,000 psi | 3/8" | NPT Female to Female | Straight
PNV-HP-S-8NF | HP | 10,000 psi | 1/2" | NPT Female to Female | Straight
PNV-HP-S-12NF | HP | 10,000 psi | 3/4" | NPT Female to Female | Straight
PNV-HP-S-16NF | HP | 10,000 psi | 1" | NPT Female to Female | Straight
PNV-HP-S-4NMF | HP | 10,000 psi | 1/4" | NPT Male x Female | Straight
PNV-HP-S-6NMF | HP | 10,000 psi | 3/8" | NPT Male x Female | Straight
PNV-HP-S-8NMF | HP | 10,000 psi | 1/2" | NPT Male x Female | Straight
PNV-HP-S-12NMF | HP | 10,000 psi | 3/4" | NPT Male x Female | Straight
PNV-HP-S-16NMF | HP | 10,000 psi | 1" | NPT Male x Female | Straight
PNV-HP-S-4NF-A | HP | 10,000 psi | 1/4" | NPT Female to Female | Angle Type
PNV-HP-S-6NF-A | HP | 10,000 psi | 3/8" | NPT Female to Female | Angle Type
PNV-HP-S-8NF-A | HP | 10,000 psi | 1/2" | NPT Female to Female | Angle Type
PNV-HP-S-12NF-A | HP | 10,000 psi | 3/4" | NPT Female to Female | Angle Type
PNV-HP-S-16NF-A | HP | 10,000 psi | 1" | NPT Female to Female | Angle Type
PNV-HP-S-4NMF-A | HP | 10,000 psi | 1/4" | NPT Male x Female | Angle Type
PNV-HP-S-6NMF-A | HP | 10,000 psi | 3/8" | NPT Male x Female | Angle Type
PNV-HP-S-8NMF-A | HP | 10,000 psi | 1/2" | NPT Male x Female | Angle Type
PNV-HP-S-12NMF-A | HP | 10,000 psi | 3/4" | NPT Male x Female | Angle Type
PNV-HP-S-16NMF-A | HP | 10,000 psi | 1" | NPT Male x Female | Angle Type
PNV-HP1-S-4NF | HP1 | 15,000 psi | 1/4" | NPT Female to Female | Straight
PNV-HP1-S-6NF | HP1 | 15,000 psi | 3/8" | NPT Female to Female | Straight
PNV-HP1-S-8NF | HP1 | 15,000 psi | 1/2" | NPT Female to Female | Straight
PNV-HP1-S-4NMF | HP1 | 15,000 psi | 1/4" | NPT Male x Female | Straight
PNV-HP1-S-6NMF | HP1 | 15,000 psi | 3/8" | NPT Male x Female | Straight
PNV-HP1-S-8NMF | HP1 | 15,000 psi | 1/2" | NPT Male x Female | Straight
PNV-HP1-S-4NMF-A | HP1 | 15,000 psi | 1/4" | NPT Male x Female | Angle Type
PNV-HP1-S-6NMF-A | HP1 | 15,000 psi | 3/8" | NPT Male x Female | Angle Type
PNV-HP1-S-8NMF-A | HP1 | 15,000 psi | 1/2" | NPT Male x Female | Angle Type

Notas
103 configuraciones disponibles en la familia HP que cubren múltiples tamaños, tipos de conexión (NPT, MP Cone, HP Cone), configuraciones de cuerpo (recta, ángulo), opciones multi‑puerto (3 vías) y colectores, y asientos reemplazables. La tabla anterior muestra referencias y configuraciones representativas.
