Máquina de limpieza por ultrasonidos MOT-4000N

industrialde acero inoxidablede alta eficacia

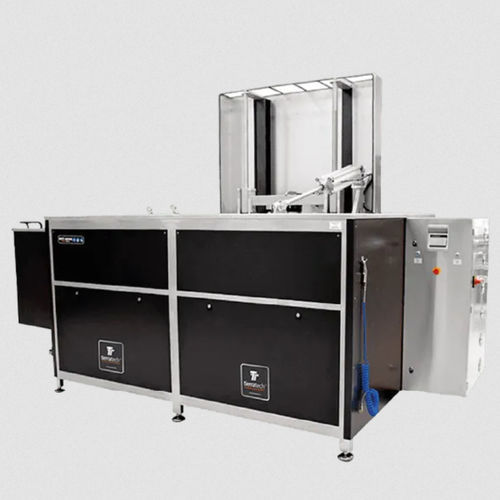

The MOT-4000N ultrasonic cleaning equipment, with a capacity of 4000 liters and a weight of 2800kg, features a pneumatic lifting platform for loading and unloading, capable of supporting up to 2000kg.This equipment operates at a frequency of 40 KHz with a sweep system of ±2% and incorporates 12 PZT piezoelectric transducers with an aluminum alloy body, ensuring high performance and efficiency in cleaning industrial parts.It is equipped with a 4.3” TFT LCD touch screen, functional and intuitive; with access to selection of ultrasonic time, temperature, and peripheral or optional systems; and programmable with a weekly calendar.With an ultrasonic power of 24000Wp (48000W p-p), the MOT-4000N ultrasonic cleaning equipment offers deep and effective cleaning, optimizing the maintenance of your equipment.Motor Clean is the line of equipment and ultrasonic cleaning systems specially designed for automotive professionals.Tank capacity: 4000 litersUltrasonic power: 600Wp (1200Wp-p)Weight: 2800kgPneumatic lifting platform: up to 2000kgUseful dimensions: 2280 x 1380 x 890 mmInternal dimensions: 2400 x 1500 x 1260 mmHeating resistance: 30000VPower supply: 400VUltrasonic Features:Ultrasonic Power: 20400Wp (408000Wp-p)Ultrasonic generators with an output power of 20400Wp (408000Wp-p)12 submersible emitters of 1700Wp (3400Wp-p) each, made of 2.5mm AISI 316 stainless steel with 34 PZT piezoelectric transducers (lead zirconate titanate), with aluminum alloy body.Operating frequency: 40 KHz with frequency sweep system (±2%).Control Panel:4.3” TFT LCD touch screen, functional and intuitive; with access to selection of ultrasonic time, temperature, and peripheral or optional systems; and programmable with weekly calendar.PLC with temperature module of 6 outputs and 8 inputs.Finishes and Accessories:Tank made of 2 mm AISI 304 stainless steel.External paneling in 1mm steel with special anti-fingerprint finish and easy cleaning.20 mm thick thermal-acoustic insulation.Recessed handles.Stainless steel basket with anchoring system for loading, unloading, and draining parts.½” inch ball valve for drainage.Height-adjustable silentblock feet.Cover made of insulated stainless steel, manually opened.Technical Specifications:Tank capacity: 4000 litersUltrasonic power: 600Wp (1200Wp-p)Weight: 2800kgPneumatic lifting platform: up to 2000kgUseful dimensions: 2280 x 1380 x 890 mmInternal dimensions: 2400 x 1500 x 1260 mmHeating resistance: 30000VPower supply: 400VOperating frequency: 40 KHz (sweep system ±2%)12 PZT piezoelectric transducers4.3” TFT LCD touch screenPLC with temperature module (6 outputs, 8 inputs)Tank in AISI 304 stainless steel (2 mm)External paneling in 1mm steel, anti-fingerprintThermal-acoustic insulation (20 mm)Stainless steel basket with anchoring system½” ball valve for drainageHeight-adjustable silentblock feetInsulated stainless steel cover, manual opening
