Máquina de limpieza por ultrasonidos MOT-8000N

automáticaindustrialde proceso

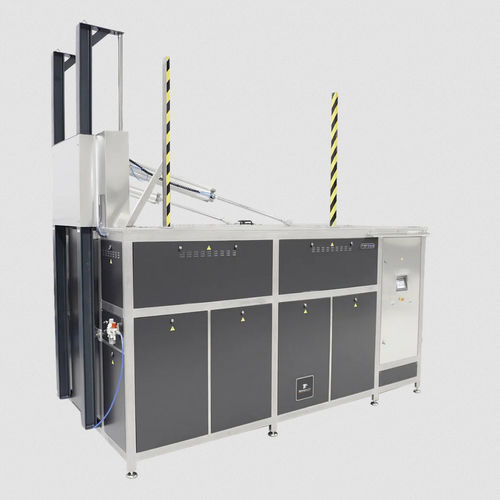

The MOT-8000N ultrasonic cleaning equipment features an impressive power of 40,000 Wp (80,000 Wp-p), provided by high-performance ultrasonic generators and 20 submersible emitters of 2,000 Wp (4,000 Wp-p), made of 2.5 mm AISI 316 stainless steel.Equipped with 34 PZT (lead zirconate titanate) transducers with an aluminum alloy body, ensuring exceptional efficiency and prolonged durability. Its tank, built in 3 mm AISI 304 stainless steel, ensures resistance to the most demanding requirements.The design includes an integrated cabinet and an external steel paneling of 1 mm with an easy-to-clean anti-fingerprint finish, as well as a 20 mm thermo-acoustic insulator, which reduces noise and optimizes thermal efficiency.For greater convenience, the system incorporates a double automatic heat-insulated lid, made of stainless steel and equipped with pneumatic cylinders, ensuring safe and efficient closure at the end of the day.Additionally, it features a compressed air gun, ideal for quick and precise drying of parts, and an integrated system for separating lubricants and oils, which effectively removes residues from the tank surface, keeping the equipment in optimal cleaning and operating conditions.Tank capacity: 8000 litersUltrasonic power: 34000Wp (68000Wp-p)Weight: 3500kgIntegrated cabinet dimensions: 2200x600x1900 mmUseful dimensions: 2900 x 1900 x 1180 mmInternal dimensions: 3000 x 2000 x 1495 mmHeating resistance: 4x15000WPower supply: 400VUltrasonic Features:Ultrasonic Power: 34000Wp (68000Wp-p)Ultrasonic generator with output power of 34000Wp (68000Wp-p)20 submersible emitters of 1700Wp (3400W p-p) each, built in 2.5mm AISI 316 stainless steel with 34 PZT piezoelectric transducers (lead zirconate titanate), with aluminum alloy body.Operating frequency: 40 KHz with frequency sweep system (sweep system ±2%).Control Panel:7” TFT LCD touch screen, functional and intuitive; access to selection of ultrasonic time, temperature, and peripheral or optional systems; programmable with weekly calendar.PLC with temperature module of 6 outputs and 8 inputs.Finishes and Accessories:Tank built in 2 mm AISI 304 stainless steel.External paneling in 1mm steel with special anti-fingerprint and easy-to-clean finish.20 mm thick thermal-acoustic insulation.Recessed handles.Stainless steel basket with anchoring system for loading, unloading, and draining parts.½” inch ball valve for drainage.Height-adjustable silentblock feet.Stainless steel lid, heat-insulated and manual opening.Technical Specifications / Features:Tank capacity: 8000 litersUltrasonic power: 34000Wp (68000Wp-p)Weight: 3500kgIntegrated cabinet dimensions: 2200x600x1900 mmUseful dimensions: 2900 x 1900 x 1180 mmInternal dimensions: 3000 x 2000 x 1495 mmHeating resistance: 4x15000WPower supply: 400V34 PZT transducers20 submersible emittersFrequency: 40 KHz (sweep ±2%)7” TFT LCD touch screenPLC with 6 outputs and 8 inputsStainless steel construction (AISI 304 and 316)Thermo-acoustic insulation: 20 mmCompressed air gunAutomatic heat-insulated double lidLubricant and oil separation system
