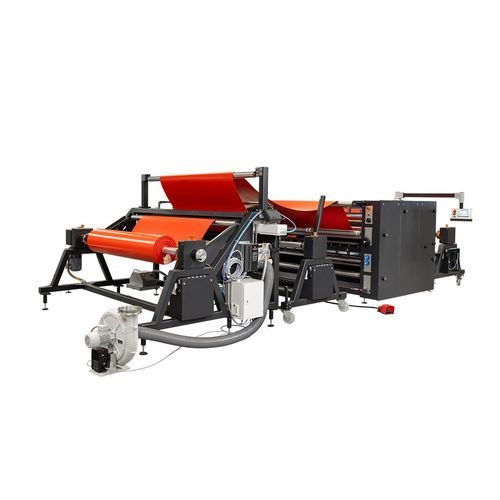

Máquina de laminado en rollo WSL

de rodillo a rodillode rodillo a rodilloindustrial

Présentation
The Crest WSL is a high-precision slitter rewinder and optional inline laminator engineered for tension-sensitive conversion of specialty foams, films and laminates. It integrates pneumatic circular slitting, loop-controlled center winding and an advanced dual-roller lamination nip to deliver deformation-free winding, clean edges and homogeneous, bubble-free laminates.

Fonctions principales

• Pneumatic circular slitting (crush-cut) for ultra-clean, burr-free edges
• Loop-controlled center winding with closed-loop tension control to prevent telescoping and material deformation
• Optional inline Corona surface activation for improved adhesive anchoring
• Single-pass and dual-pass lamination workflows (integrated laminator option)
• Dual-roller nip lamination system to eliminate micro-air inclusions
• Operator-friendly, rapid knife changeovers and flexible shaft handling for 3" and 6" cores

Processus / Workflow
PASS 1: Foam Activation & Adhesive Coating
The raw specialty foam is unwound and passed through the Corona Treatment Unit to microscopically activate the surface, then a high-tack adhesive layer is laminated under precise nip pressure to ensure a strong bond.

PASS 2: Plastic Backing Application
The laminated adhesive foam from Pass 1 is fed back in; the machine applies the plastic backing film (Corona off) and performs the final precision pneumatic slitting to customer widths.

Applications & Avantages

• Deformation-free conversion of compressible and tension-sensitive foams and laminates
• High-precision slitting for converters requiring clean edges without adhesive bleeding or fraying
• Single-platform solution for multi-stage flexo backing production (reduces handling and scrap)
• Heavy-duty production capability for jumbo master rolls with consistent winding density
• Maximizes material yield and minimizes scrap through precise tension and edge control

Matériaux adaptés

• Technical foam laminates (e.g., ProBAK®, Softprint®, Cushion-Mount™)
• Flexographic backing & compressible foams
• Polyester (PET) & PVC plastic backing films
• High-tack self-adhesive laminates
• Protective films & release liners
• Many other specialty materials used in converting and lamination

Caractéristiques / spécifications techniques

• Modèle: WSL (Slitter Winder Laminator platform)
• Slitting method: Pneumatic circular knives (crush-cut)
• Tension control: Loop-controlled center winding with closed-loop tension control
• Inline surface treatment: Optional Corona treatment unit (used in Pass 1)
• Lamination: Dual-roller nip system for bubble-free lamination
• Working width: Adjustable; configurable up to 1650 mm and beyond (modular)
• Core handling: Fast changeovers for 3" and 6" cores (flexible shaft handling)
• Maximum master roll diameter: up to ø1200 mm
• Maximum roll weight: up to 500 kg (center winding)
• Heavy-duty platform designed for high uptime and large-volume production
• Warranty: 5-year warranty when a service agreement is in place
