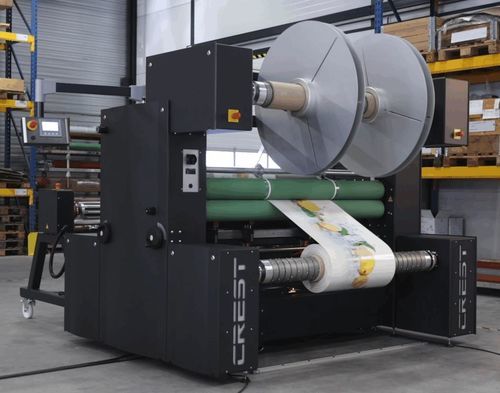

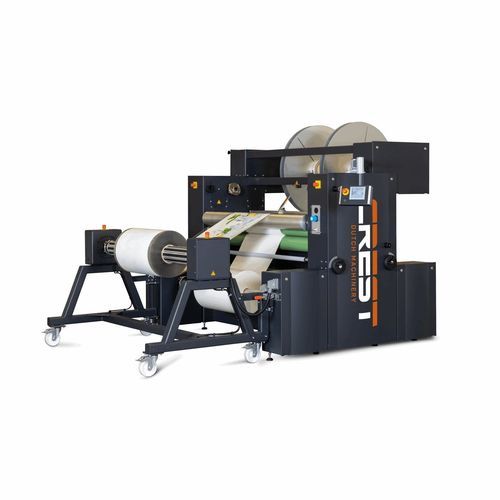

Máquina de laminado de rodillo a rodillo R2R

automatizadacon cortadora longitudinalindustrial

Résumé
The Crest R2R Laminator Slitter is a roll-to-roll converting platform that integrates lamination, heavy-duty shear-cut trimming and precision tension-controlled rewinding in a single continuous workflow. Originally engineered for printed PET on self-adhesive PE foam and thin PVC, it is configurable for a broad range of printed roll materials and converting requirements.

Fonctions principales

• Laminate — Apply protective films and functional layers in one workflow. Handles self-adhesive PE foam, thin PVC backing and protective laminate over UV-cured, latex, solvent and eco-solvent printed media. Adjustable, heatable laminating rollers accommodate a wide range of substrates and adhesive systems.
• Trim — Heavy-duty pneumatic shear-cut trimming capable of cleanly cutting thick PVC and other tough substrates without cracking or deforming the material. Delivers precise, consistent finished width directly off the line.
• Rewind — Automated web tension regulation via a closed feedback loop from unwind through lamination, trimming and rewind. Wide tension range with high torque on the unwind for rigid substrates and delicate, controlled handling at the rewind to protect print and laminate quality.

Applications / Où s'utilise

• Print finishing & sticker production — converting printed PVC, PET and self-adhesive vinyl onto PE foam or thin PVC backing.
• Wide format & decorative roll media — wallcoverings, canvas, banners and floor graphics for UV, latex, solvent and eco-solvent printed substrates.
• Custom configurations — specialty printed roll materials and technical substrates where standard configurations don’t suffice.

Caractéristiques d'usage et avantages

• One-pass workflow: lamination, trimming and rewinding integrated to reduce handling, eliminate alignment errors and deliver finished rolls ready for downstream processes.
• Industrial-grade construction designed to handle both the toughest rigid substrates and the most delicate printed media with consistent precision.
• Configurable platform: web width, lamination setup, trimming configuration, backing application and rewind tension tuned around material type and production process.
• PLC + HMI control for machine operation and process management.
• Wide, accurately controlled tension range with closed-loop regulation and high-torque unwind drive.

Matériaux adaptés

• Printed wallcoverings
• Decorative wallpapers
• Canvas prints
• Banner media
• Floor graphics
• UV-cured prints
• Latex prints
• Solvent & eco-solvent prints
• Foam backing layers
• Self-adhesive vinyl
• Specialty printed media

Informations complémentaires

• Heavy-duty pneumatic shear-cut trimming for robust edge finishing.
• Adjustable, heatable laminating rollers to support various adhesive systems and substrates.
• High torque available on the unwind for rigid substrates; delicate tension control at rewind to protect print and laminate integrity.
• Platform regularly configured for substrates and converting setups outside the standard range.
• Warranty: 5-year warranty applies when a service agreement is in place.

Caractéristiques / spécifications techniques

• Fonctions intégrées : Lamination, Heavy-duty shear-cut trimming, Tension-controlled rewinding
• Contrôle : PLC + HMI
• Contrôle de tension : boucle de rétroaction fermée, plage de tension large
• Laminating rollers : réglables et chauffables
• Unwind : entraînement à couple élevé pour substrats rigides
• Rewind : gestion délicate pour protection du média imprimé
• Trimming : système pneumatique pour coupes nettes sur matériaux épais
• Configuration : ajustable pour largeur de web, configuration de lamination, application de backing et paramètres de tension
• Applications ciblées : conversion d’impression, production d’autocollants, médias décoratifs grand format, supports spécialisés
• Garantie : 5 ans sous condition d’un contrat de service
