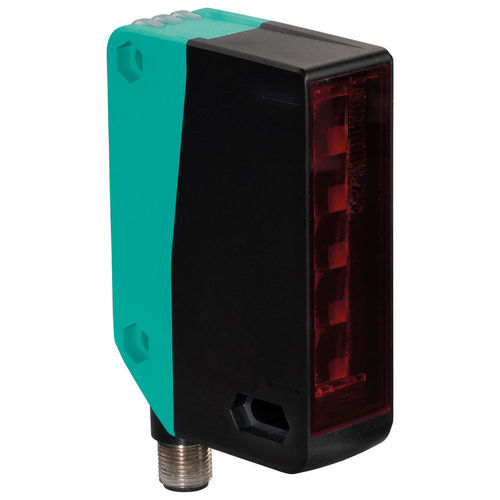

Sensor fotoeléctrico retrorreflector OGR4000-R305-2EP-IO-V1

rectangularluz rojaLED

Key Advantages at a GlanceArea sensors with retro-reflective barrier using five light beams in a standard photoelectric sensor housingHighly visible light beams ensure comfortable sensor alignmentReliable detection of all surfaces regardless of object natureReliable detection of small parts for very flat objects with irregular shapesConsistent detection of 2 mm objects throughout the entire detection areaTechnical DataRetro-reflective area sensor, red light, max. detection range 4 m, light field height 60 mm, IO-Link interface, 2 push-pull outputs, M12 connectorGeneral DataEffective operating distanceStandard mode: 0 ... 4 m High resolution: 0 ... 2 mReflector distance0.2 ... 4 m Reflector H85-2Limit effective distance4 mDetection rangeper frameReference objectReflector H85-2Light emitterLEDLight typeAlternating light, redLED risk group labelingExempt groupField height60 mmField width12 mmObject sizeMinimum 2 mm, 3 mm, 5 mm, 8 mm, 10 mm; position-independent detection within the detection rangeNumber of beams5Opening angle+/- 2°Ambient light limitEN 60947-5-2Resolutionper frameFunctional Safety DataMTTFd674 yearsService life (TM)20 yearsDiagnostic coverage factor (DC)0 %Indication and Operation ElementsOperation indicationGreen LED:steady: onflashing (4 Hz): short circuitflashing with brief interruptions (1 Hz): IO-Link modeFunction indicationYellow LED:permanently on: light path clearpermanently off: object detectedFlashing (8 Hz) - end of compensationControl elementsTEACH-IN keyControl elements5-step rotary switch for selecting operating modesElectrical DataOperating voltageUB10 ... 30 V DC IO-Link mode: 18 ... 30 V DCRipplemax. 10 %No-load currentI0< 35 mA at 24 V supply voltageProtection classIIIInterfaceInterface typeIO-LinkIO-Link version1.1Device profileIdentification & diagnosis - I&D Smart sensor - SSP 2.1Process dataInput 8 Bit - switching signal 1 Bit - stability alarm 1 Bit - measurement value 6 Bit Output 2 Bit - sensor control function 1 Bit - evaluation control function 1 BitVendor ID1 (0x0001)Device ID0x101001 (1052673)Transfer cadenceCOM2 (38.4 kBit/s)Minimum cycle time2.3 msSIO mode admissionyesCompatible master port typeClass A, Class B (use a 3-pin adapter or 3-wire cable)OutputSwitching typeThe sensor is of adjustable switching type. Default setting is:C/Q - Pin 4: NPN normally open/off, PNP normally closed/on, IO-Link /Q - Pin 2: NPN normally closed/on, PNP normally open/offOutput signal2 complementary outputs, short-circuit protected, reverse polarity protected, surge proofSwitching voltagemax. 30 V DCSwitching currentmax. 100 mAVoltage dropUd≤ 1.5 V DCSwitching frequencyfStandard mode: 500 Hz, High resolution: 250 HzResponse timeStandard mode: 1 ms, High resolution: 2 msComplianceCommunication interfaceIEC 61131-9 / IO-Link V1.1.4Product standardEN 60947-5-2Authorizations and CertificatesUL AuthorizationE87056, cULus Listed, Class 2 power supply, type 1 classificationCCC AuthorizationProducts with max. operating voltage ≤36 V do not bear the CCC mark, as approval is not required.Environmental ConditionsAmbient temperature-40 ... 60 °C (-40 ... 140 °F) Minimum ambient temperature during teaching is -30 °C. Permitted temperature change after teaching is ±20 K.Storage temperature-40 ... 70 °C (-40 ... 158 °F)Mechanical DataDegree of protectionIP67ConnectionM12 x 1 connector, 4-pin, 90° rotatableMaterialHousingPC (Polycarbonate)Light outputPlastic lensMass94 gDimensionsHeight89 mmWidth25.8 mmDepth59.5 mmProduct Compliance: Europe – CEProduct Compliance: USA - cULus LISTEDIO-Link interfaceFeatures / Technical SpecificationsModel: OGR4000-R305-2EP-IO-V1Type: Surface optical barrier, retro-reflective area sensorDetection range: up to 4 m (standard), up to 2 m (high resolution)Light field height: 60 mmNumber of beams: 5Output: 2 push-pull outputs, IO-Link interfaceConnection: M12 connector, 4-pin, 90° rotatableProtection: IP67Operating voltage: 10 ... 30 V DC (IO-Link: 18 ... 30 V DC)Operating temperature: -40 ... 60 °CDimensions: 89 x 25.8 x 59.5 mmWeight: 94 g
