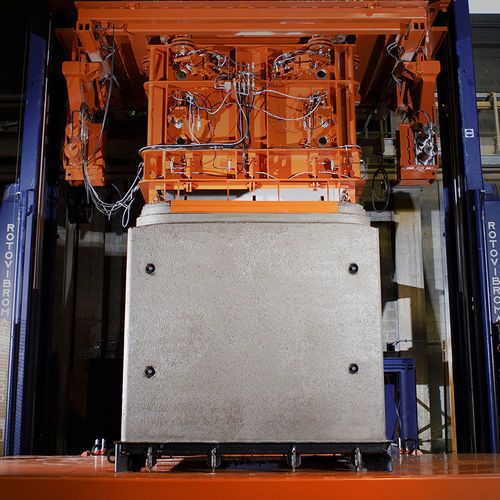

Máquina para fabricar para productos de hormigón Rotovibromatic

automáticopara obra de construcción

Fully automatic machine for production by vibrocompression, with both direct and overturning demolding of products with heights between 1,000 mm and 3,000 mm, especially suitable for large-sized precast elements.Product Details:Fully automatic machine for the production by vibrocompression, with both direct and overturning demolding of a wide variety of concrete products. Rotovibromatic is especially suitable for the automatic production of large-sized precast elements, with or without bottom, monolithic, even with special geometries.The machine can produce, depending on the model, elements with a maximum diameter of 3,000 mm, or even 3,000 mm x 3,000 mm, with a variable height between 250 mm and 3,000 mm, in single operation mode (multiple production can also be provided on request). The type of vibration can be chosen according to needs (vibrating column with hydraulic locking/unlocking of the mold in each cycle, vibrating bench with hydraulic locking frame of the molds, or standard vibrator mounted inside the core).Technical Features:Equipped with a bottom pressing system to ensure greater compaction and fixation.Can be equipped with a quick hydraulic mold change system, allowing daily mold changes in less than 1.5 hours (no need to adjust the internal mold, external molds, and pressers after production change).Fully automatic concrete feeding: the conveyor belt is combined with a special epicyclic spreader with 4 rotating elements, distributing concrete in minimal time even to the most peripheral points. This solution is very effective in the production of rectangular pieces and large rectangular tanks.Additional components make Rotovibromatic highly functional: vibration regulation (mechanical or electronic via inverter), loading hopper that can be inspected for cleaning, automatic extraction of precast elements at the end of the cycle via motorized trailer, with possible subsequent movements and storage.The system can be complemented with automatic feeding of base pallets (flat bottoms) for overturning production, or standard bottoms for direct demolding production, with cleaning and greasing of the bottoms, introduction of gaskets, and automatic overhead movement. These advantages further streamline the production cycle, reducing the necessary personnel.General management and control of the machine are carried out via Vicom PC system, with synoptic panels for machine status and anomaly control, equipped with modules for remote assistance, with the possibility of remote production management (Industry 4.0).Thanks to its performance, Rotovibromatic is a unique machine in its class; the result of study, research, and technology.Products that can be made:Tanks (circular, rectangular, or elliptical), with or without sedimentation chambers, for oil removal, water containment, purificationCircular pipesCircular pipes with flat baseUnreinforced pipesReinforced pipes with rigid reinforcementReinforced pipes with fibersDrainage pipesPipes with male-male connectorsRectangular and ovoid pipesJacking pipesWell bottoms (inspection)Extensions and terminal conesMonolithic cones for wells (inspection)Flat plates and coversExtensions for wells, pipes with branches, wells for road discharge, drainage channelsSpecial products in general, made to specific customer requests, with any type of jointAdvantages:High production: Rotovibromatic allows quadrupling the productivity of exceptionally sized concrete productsFlexibility (a wide range of products can be made)Drastic reduction in labor hours, reducing the necessary personnelHigh product quality, guaranteed by automatic electronic regulation via vibration (with vibrator mounted inside the mold) and concrete feedingVery fast mold change: only 15 minutes required with the patented Colle S.p.A. system (reduced times allow mold change on the same day for a possible second work shift), without the need to adjust the mold after the changeComplete machine control via Vicom PC system, with remote management and control of production (Industry 4.0) with any type of deviceGuaranteed operator support via real-time remote assistanceTechnical Specifications / Features:Automatic vibrocompression productionDirect and overturning demoldingProduction heights: 1,000 mm to 3,000 mmMaximum diameter: up to 3,000 mm or 3,000 mm x 3,000 mmSingle or multiple operation modeHydraulic quick mold change systemAutomatic concrete feeding with epicyclic spreaderMechanical/electronic vibration regulationAutomatic extraction and storage of precast elementsRemote management and control (Industry 4.0)
