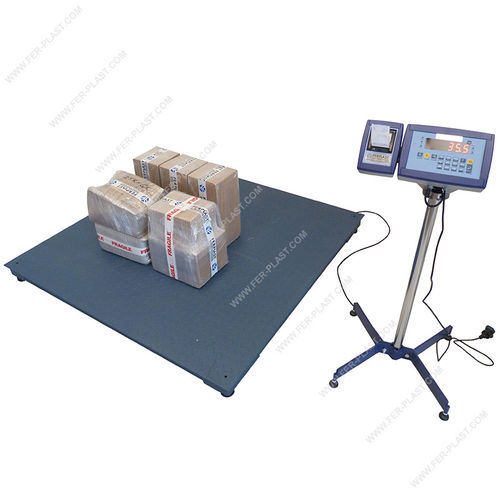

Balanza comercial FPFL series

electrónicade plataformainterna

Electronic floor weighing platform, simple, economical, and reliable. CE-M approved.FLOOR SCALES “FLOOR” SERIES FPFL - INDICATOR EXCLUDEDThe floor scales of this series are typically used in all types of industrial and commercial areas for weighing pallets, boxes, or packages. They can be installed on the floor or on an existing packaging line. The scales are available in the standard version or with load cells approved for sale to third parties.TECHNICAL FEATURES OF THE WEIGHING PLATFORM• Functions with 4 shear-beam 350 Ohm nickel-plated steel load cells, approved according to OIML R60 C3 (3000 divisions), IP67 protection.• Monoblock structure made of oven-painted steel tubing, with adjustable support feet and level bubble.• Fixed lobed steel sheet loading plan.• Max power 15 VDC.• Hermetic junction box, IP67 wiring with 3 m of shielded cable for connection to the indicator.Technical Specifications TableCodeDimensions (mm)Max Load (kg)Standard Division (g)CE-M Division (g) (*)FPFLA 6001000x1000x120600200200FPFLA 15001000x1000x120600/1500200/500500FPFLM 6001000x1250x120600200200FPFLM 15001000x1250x120600/1500200/500500FPFLB 6001250x1250x120600200200FPFLB 15001250x1250x120600/1500200/500500FPFLD 15001250x1500x1201500500500FPFLD 30001250x1500x1201500/3000500/10001000FPFLE 15001500x1500x1201500500500FPFLE 30001500x1500x1201500/3000500/10001000(*) CE-M divisions (approved scale) can only be obtained with the corresponding options, together with our indicators.WEIGHT INDICATORS:The weight indicators can be placed on the floor, hung on the wall, or on the support column.FPDFWL BASE weight indicator: FPDFWL BASE indicators with waterproof functional 5-key keypad, 25 mm high-contrast backlit LCD display with 6 digits and icons to indicate active functions. Thanks to the ABS IP54 housing, they are easy to clean and resistant to hostile and corrosive environments.FPDFWKPXP weight indicator - integrated printer: Weight indicators with waterproof functional numeric keypad with 17 keys, 25 mm backlit LCD display with 6 high-contrast digits and icons for active functions. Integrated thermal printer and calendar clock. The IP65 ABS waterproof housing is easy to clean and durable, suitable for weighing in hostile and corrosive environments.FPDFWDXT weight indicator: Weight indicator with large 40 mm display with high-brightness red LEDs, suitable for viewing from any angle and from a great distance. Equipped with a stainless steel housing with IP68 protection against rain and dust, easy to clean and resistant to hostile and corrosive environments.FPDFWLIP stainless steel weight indicator: IP68 stainless steel weight indicator equipped with a functional 5-key keypad with 40 mm color backlit LCD display with 6 high-contrast digits and icons for active functions. Ideal for applications in humid and heavy environments and in combination with stainless steel scales. With internal power supply.Thermo-adhesive paper for printer:Box of 50 rolls of adhesive thermal paper, 15 m each.Width 57 mm, hole 18 mm, outer diameter 50 mm - Minimum order unit price 1 box of 50 pieces.OPTIONAL:- Support column for weight indicators- Stainless steel support column for weight indicators- CE-M approval for sales to third parties.Monoblock electronic floor weighing platformCE-M approved4 shear-beam load cells, IP67Oven-painted steel structureAdjustable feet and level bubbleFixed lobed steel sheet loading planHermetic junction box, IP67 wiring3 m shielded cable for indicator connectionMax power 15 VDC
