Balanza con plataforma de perfil bajo FPL series

con contrapesode aceroresistente al agua

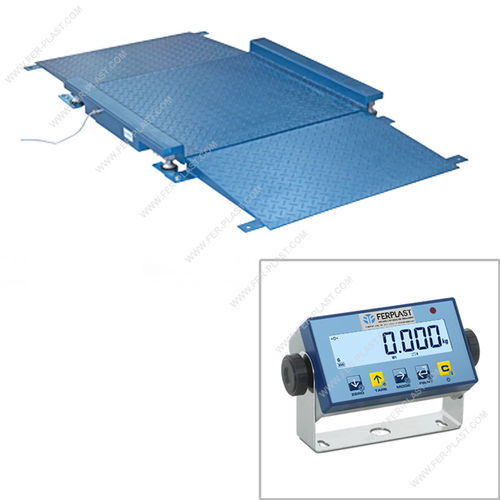

Low-profile platforms with loading/unloading ramps on both sides. CE-M approvable.FLOOR SCALES WITH LOADING RAMPS FPL SERIES WITH LOW PROFILE - INDICATOR EXCLUDEDLow-profile platforms, with embossed steel structure and painted steel ramps. They are suitable for weighing carts and pallet trucks, as they are equipped with loading/unloading ramps and side rails on the weighing platform. Available in standard version or CE-M approved version.TECHNICAL FEATURESOperates with 4 shear-beam load cells of 350 ohms in nickel-plated steel, approved according to OIML R60 C3 standards (3000 divisions), protection grade IP67.Structure and stamped load surface in steel, oven-painted, blue RAL 5007.Adjustable anti-shock feet and level bubble.Power supply from 5 to 15 VDC.Hermetic junction box, IP67 wiring with 5 m shielded cable for connection to the indicator.Side rails and double standard up/down ramp.Models and Main SpecificationsCodeDimensions (LxWxH)Max Load (kg)Standard Division (g)CE-M Division (g)FPLC800x800x52 mm600200200FPLA1000x1250x52 mm1500500500FPLB1250x1500x52 mm200010001000(*) CE-M divisions obtainable only with the relevant options, combined with our indicators.OPTIONAL:The weight indicators can be placed on the floor, hung on the wall, or on the support column.- Base weight indicator FPDFWLFPDFWL BASE indicators with waterproof functional 5-key keypad, 25 mm high-contrast backlit LCD display with 6 digits and icons to indicate active functions. Thanks to the ABS IP54 housing, they are easy to clean and resistant to hostile and corrosive environments.- Weight indicator FPDFWKPXP - integrated printerWeight indicators with waterproof numeric keypad with 17 keys and 25 mm backlit LCD display with 6 high-contrast digits and icons for active functions. Integrated thermal printer and calendar clock. The IP65 ABS waterproof housing is easy to clean and durable, suitable for weighing in hostile and corrosive environments.- Support column for weight indicators.- CE-M approval for sales to third parties.Modelos disponibles: FPLC, FPLA, FPLBDimensiones: 800x800x52 mm, 1000x1250x52 mm, 1250x1500x52 mmCarga máxima: 600 kg, 1500 kg, 2000 kgDivisión estándar: 200 g, 500 g, 1000 gDivisión CE-M: 200 g, 500 g, 1000 gIndicadores opcionales: FPDFWL BASE, FPDFWKPXPAccesorios: columna de soporte, homologación CE-M
