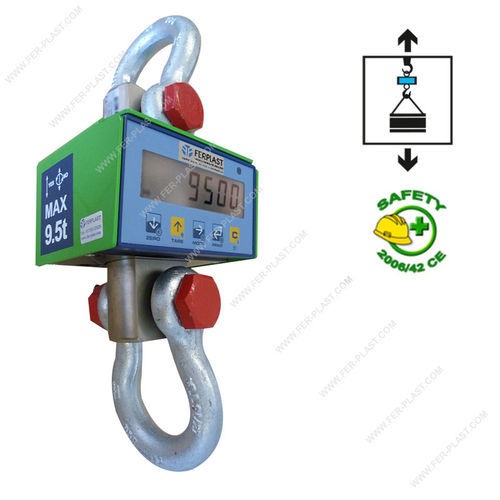

Dinamómetro digital FPMCWN series

portátilcompactoBluetooth

DINAMÓMETROS FPMCWN - PARA ELEVACIÓN Y PESAJEProfessional digital dynamometers for weighing with cranes in industrial environments. Simple and reliable, thanks to their compact dimensions, they slightly increase the lifting distance between the crane used and the goods. Supplied with a protective cover. Also available in CE-M APPROVED version.All models can be equipped with the 868 MHz radio frequency module that allows communication between dynamometers and PC, weight indicators, and weight repeaters.NOTE: All versions are supplied with a calibration certificate, performed with sample weights over the entire capacity.Main FeaturesIndividual safety, for lifting the load and weighing.Compliant with directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30 / EU.Upper and lower shackle as standard: GR3 for FPMCWNT1, GR6 for FPMCWNT3, GR6 for FPMCWNT6, and GR9 for FPMCWNT9.Compact dimensions, minimal distance between upper and lower shackles.25 mm backlit LCD display, clearly visible in all lighting conditions.Accuracy 0.03% of F.S.Waterproof 5-key keyboard: zero, semi-automatic or preset tare, mode, print, on/off.Robust painted steel housing.Standard infrared remote control for use up to 8 m away. The remote control can be configured by the customer as automatic tare only or as a remote keyboard.Powered by 4 AA batteries, 40 hours (without radio frequency module) or continuous cycle with rechargeable AA batteries (not included).Digital calibration and programmable configuration directly from the keyboard or PC with Dinitools.Programmable digital filter and automatic shutdown.Operating temperatures: -10 / +40 ºC.RS232 serial port on RJ11 connector for quick programming with Dinitools.Protective carrying case included; dimensions (WxLxH) 175x480x390mm.Selectable FunctionsHigh resolution display x 10.Precision weighing with temporary recalibration by sample weight (for internal factory use).Net / Gross.lb / kg conversion.Free conversion factor (for meter counting systems, liter counts, etc.).Weight totalization.Formulation.+/- control, with quick target and threshold input.Weighing percentage.Percentage dosing with programmable target.Piece counter.Hold.Two-speed filling/dosing with start reset (with optional DFIO).PEAK, peak weight detection.Newton-kg conversion.Models and CharacteristicsCodeMax load kgStandard division kgCE-M division kgFPMCWNT1300/600/15000.1/0.2/0.5--FPMCWNT1M1500--0.5FPMCWNT3600/1500/30000.2/0.5/1--FPMCWNT3M3000--1FPMCWNT61500/3000/60000.5/1/2--FPMCWNT6M6000--2FPMCWNT93000/6000/95001/2/5--FPMCWNT9M9000--5Options Only Available at the Time of OrderExternal 868MHz radio module for PC, with 1m USB cable. Direct power from the USB port.Standard weight indicator or with integrated printer (to be equipped with a 868 MHz radio module).Weight repeater with 100 mm LED display - stainless steel IP68 (to be equipped with a 868 MHz radio module).Full wireless weight repeater with integrated radio frequency module.Radio frequency weight repeater.Internal Bluetooth interface.Calendar clock.Alibi memory.Technical Specifications / FeaturesProfessional digital dynamometers for cranesWeighing range: 300 to 9500 kgCE-M approved versions available868 MHz radio communication module (optional)Supplied with protective cover and calibration certificateBacklit LCD display, waterproof keyboardRobust painted steel housingInfrared remote control up to 8 mPowered by 4 AA batteries (not included)Operating temperature: -10 / +40 ºCRS232 serial port for programmingProtective carrying case: 175x480x390mm
