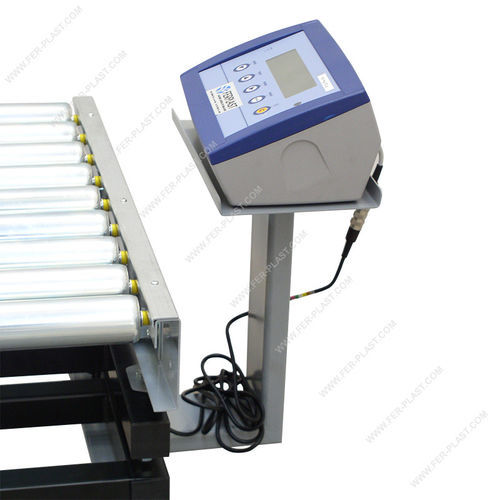

Indicador de pesaje digital FPDFWXP

con visualizador ledvisualizador LCDbenchtop

High-performance weight indicators for industrial and commercial weighing.MULTIFUNCTIONAL WEIGHT INDICATORS FPDFWXP - IP65Versatile and high-performance weight indicators. Equipped with a wide range of different modes and interfaces, they are suitable for any type of industrial or commercial application. CE-M approvable (OIML R-76 / EN 45501).Available in the following models:FPDFWXP: indicator with 5-key keypad and backlit LCD display.FPDFWKXP: indicator with 17-key keypad, with backlit LCD display.FPDFWKPXP: indicator with 17-key keypad with integrated thermal printer and calendar clock, backlit LCD display.TECHNICAL FEATURES- Waterproof and functional keypad with 5 keys or numeric-functional with 17 keys, with indications for quickly recalling main functions and settings.- 25 mm backlit LCD display with 6 digits and high-contrast icons to indicate active functions.- Waterproof ABS IP65 housing, easy to clean and resistant to hostile and corrosive environments (IP40 in version with thermal printer).- Dimensions: 278x186x125mm.- Suitable for use on a bench, column, or wall.- 24-bit A/D converter, 4 channels, max. 200 conv./sec. Automatic selection and up to 8 signal linearization points.- Max. 10,000e or 3 x 3000e at 0.3 µV/d multi-range in CE-M approved version for legal-for-trade use.- Maximum 1,000,000 displayable divisions with internal resolution up to 3,000,000 points.- Digital calibration and configuration from keypad or PC.- Power supply: internal rechargeable battery (60 hours with a 350 Ohm cell) and internal power supply 110-240 Vac.- Connection to max. 8 load cells with an input resistance of 350 ohms or max. 16 cells at 700 ohms.SELECTABLE FUNCTIONSHigh-resolution x 10 display, precision weighing with temporary recalibration using sample weight (for internal factory use), net/gross conversion, lb/kg, free conversion factor (for meter counting systems, liter counts, etc.), weight totalization, Formulation, +/- Control, with quick entry of targets and thresholds, Percentage weighing, Percentage dosing with programmable target, Piece counting, Hold.I/O SECTIONConfigurable bidirectional RS232/C port for connection to printer/labeler, or for attached printer.Bidirectional RS232/C port (in RS485 option) configurable for PC, PLC, additional remote display, or radio modem. RJ connector for quick connection.IR input available only for models with simplified 5-key keypad.KEYPAD FUNCTIONS: zeroing, automatic tare, preset tare, printing and/or data transmission, selected function command, on/off, light intensity adjustment, quick selection of operating mode, user menu access.17-key version: 30 tare file, 2 numeric IDs, keypad lock, repeat last print performed, quick entry of targets, PMU, thresholds, and setpoints.PRINTING FUNCTIONS: Configurable print layout with:- Gross - tare - net and receipt number- Date and time (only with calendar clock)- Printing of 39 barcodes for LP542S labeler or OBTPR printer.OPTIONAL REMOTE CONTROL FUNCTIONS:Radio frequency remote control with 6 keys: zero; tare; enable/disable function; print; power off.Infrared remote control with 19 keys: zero, manual tare, enable/disable function, print, power off (IR input available only for models with simplified 5-key keypad).OPTIONS ONLY AVAILABLE AT THE TIME OF ORDERColumn for weight indicatorsThermal printerSemaphore option box (requires 2 DFIO) with 3-way semaphore with programmable acoustic signal, bar graph controller for FPDFWXP indicators. The semaphore box allows management of 3 light zones and the buzzer, independently, using TTL logic.Radio modem option boxAlibi memory with calendar clock.USB / RS485 / Ethernet / WI-FI / Bluetooth interfaceDFIO interface with 2 inputs + 2 outputs.Analog output with 16-bit D/A converter.Radio remote control and radio frequency receiver. 433 MHz, with 6 buttons, for use up to 50 m away, in suitable environmental conditions19-key remote control and infrared receiver.Weight repeater with 100mm LED display. Stainless steel IP68 box, 5-key keypad, valve to regulate humidity and pressure.CE-M approval for sales to third parties.ATEX approval for operation in potentially explosive environments (on request).In ATEX systems, for direct weighing of light metals (aluminum, magnesium, titanium, and their alloys) the upper part of the structure installed on the bars must be made of stainless steel.Technical Specifications / FeaturesModels: FPDFWXP (5-key), FPDFWKXP (17-key), FPDFWKPXP (17-key + printer)Display: 25 mm backlit LCD, 6 digitsHousing: ABS IP65 (IP40 with printer)Dimensions: 278x186x125mmPower: Internal rechargeable battery, 110-240 VacMax. load cells: 8 (350Ω) or 16 (700Ω)Calibration: Digital, via keypad or PCInterfaces: RS232/C, RS485, USB, Ethernet, WI-FI, Bluetooth (options)Optional: Thermal printer, semaphore, radio modem, alibi memory, analog output, remote controls, weight repeater, ATEX approval
