Sistema de telegestión NMSX1

Overview

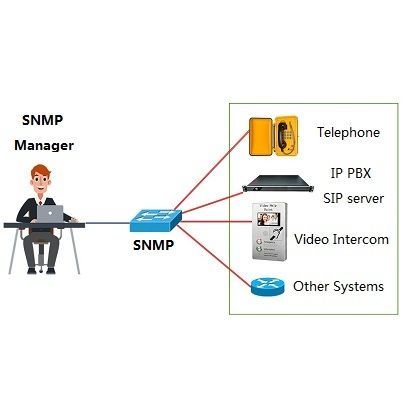

The NMS server software is based on the BS structure. The installation and operation environment is a Linux server and it is accessed through a web browser WEB-GUI. The system performs network management on all devices in the system based on the SNMP protocol including IP PBX, recorder, office telephone, subway station telephone, tunnel telephone and all telephones registered to the system.

Key functions

• Map navigation to quickly locate the location of each phone terminal.
• Real-time view of the health status of each managed object.
• Immediate reporting of any alarms in terminals, IP PBX or recorder.

Software & Licensing
Software Model number: S- NMS-X1-0.0.4-13. Description: Network Management System software. License SKU: KNNMS-X1-SNMP-0.0.4-13. Description: KNNMS-X1 Network Management system license. Licence SKU for management authority: 28 account number. For dispatcher Agent: KNNMS-X1-SNMP-0.0.4-13-AG28. For management Admin: KNNMS-X1-SNMP-0.0.4-13-AD28.

Server hardware
Hardware SKU: KNSERBER-HW1.

Interfaces

• Trunking gateway: interface to trunking / radio system.
• VoIP gateway: interface to other telephone systems.
• SIP protocol: interface to other PA systems.
• SIP protocol: interface to other SCADA systems.

System access and operation
Accessed via web browser WEB-GUI. Provides browser log-in, map navigation for dispatchers, alarm reporting, real-time monitoring and health detection lists.

Application
The SNMP unified network management system is mainly used in large telephone dispatching systems. Typical deployments include subways, stations and industrial construction sites. It supports batch management of classes of terminals or management of single terminals.

Detailed pictures / GUI features
Includes web-GUI screenshots, map navigation views for dispatcher agents, real-time alarm and health-monitoring displays.

Caractéristiques / spécifications techniques

• Produit: SNMP Unified Network Management System
• Nom modèle affiché: NMSX1
• Système d'exploitation requis: Linux (serveur)
• Accès: Web browser (WEB-GUI)
• Protocoles supportés: SNMP, SIP
• Objets de gestion: IP PBX, Recorder, office telephones, subway station telephones, tunnel telephones, autres terminaux enregistrés
• Fonctions principales: map navigation, real-time health status, alarm reporting
• Software model number: S- NMS-X1-0.0.4-13
• License SKU: KNNMS-X1-SNMP-0.0.4-13
• Dispatcher agent SKU: KNNMS-X1-SNMP-0.0.4-13-AG28
• Admin management SKU: KNNMS-X1-SNMP-0.0.4-13-AD28
• Hardware SKU: KNSERBER-HW1
• Interfaces: trunking gateway, VoIP gateway, SIP to PA systems, SIP to SCADA systems
