Overview

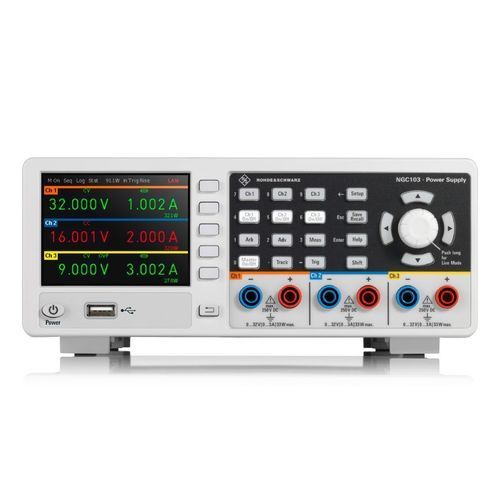

R&S®NGC100 DC power supplies are compact, energy-efficient instruments that remain cool and quiet even at maximum load. They offer practical interfaces and connectors, comfort functions for special applications, and a configurable online product configurator. Available with one, two or three channels, they are suitable for development labs, industrial environments, manufacturing and education.

Key Facts

• Max. output power: 100 W
• Max. voltage per channel: 32 V
• Max. current per channel: 3 A, 5 A or 10 A
• Galvanically isolated, floating and short-circuit proof outputs
• Intuitive, price‑transparent online product configurator

Features & benefits

• FlexPower: deliver maximum power at various operating points, enabling variable voltage/current combinations within an overall power limit
• EasyArb: generate complex time‑varying voltage or current sequences (dwell times down to 10 ms) to emulate real‑world scenarios
• High acquisition data logging: simultaneous voltage and current logging on all outputs at up to 1000 samples/s with CSV export
• Parallel and series operation: isolated channels can be combined in series to increase voltage (up to 96 V) or in parallel for higher current (up to 10 A)
• EasyRamp: control inrush current with continuous voltage ramps (10 ms to 10 s)
• Output delay sequencing: create power‑up sequences with per‑channel delays
• Remote sensing: compensate for voltage drops at DUT input terminals to improve regulation and measurement accuracy
• External trigger and analog control interface: start functions via TTL trigger; direct control with external analog voltage (0–10 V) or current (4–20 mA)
• Protection functions: OVP, OCP, OPP, OTP plus FuseLink and fuse delay at output‑on

Available models
R&S®NGC101 — Order Number 3657.2288.02 — Number of output channels: 1 — Max. output power: 100 W — Output voltage per channel: 32 V — Output current per channel: 10 A — Price from: 1.200 EUR
R&S®NGC101-G — Order Number 3657.2288.03 — Number of output channels: 1 — Max. output power: 100 W — Output voltage per channel: 32 V — Output current per channel: 10 A — Price from: 1.660 EUR
R&S®NGC102 — Order Number 3657.2359.02 — Number of output channels: 2 — Max. output power: 100 W — Output voltage per channel: 32 V — Output current per channel: 5 A — Price from: 1.350 EUR
R&S®NGC102-G — Order Number 3657.2359.03 — Number of output channels: 2 — Max. output power: 100 W — Output voltage per channel: 32 V — Output current per channel: 5 A — Price from: 1.810 EUR
R&S®NGC103 — Order Number 3657.2413.02 — Number of output channels: 3 — Max. output power: 100 W — Output voltage per channel: 32 V — Output current per channel: 3 A — Price from: 1.490 EUR
R&S®NGC103-G — Order Number 3657.2413.03 — Number of output channels: 3 — Max. output power: 100 W — Output voltage per channel: 32 V — Output current per channel: 3 A — Price from: 1.950 EUR

Caractéristiques / spécifications techniques

• Number of output channels: 1 / 2 / 3
• Total output power: max. 100 W
• Maximum output power per channel: 100 W / 50 W / 33 W
• Output voltage per channel: 0 V to 32 V
• Maximum output current per channel: 10 A / 5 A / 3 A
• Voltage ripple and noise (20 Hz to 20 MHz): R&S®NGC101 < 1 mV (RMS); R&S®NGC102/103 < 450 µV (RMS)
• Current ripple and noise (20 Hz to 20 MHz): R&S®NGC101 < 1.5 mA (RMS) (meas.); R&S®NGC102/103 < 1 mA (RMS) (meas.)
• Load recovery time (10% to 90% load change within ±20 mV of set voltage): < 1 ms (meas.)
• Programming resolution voltage: 1 mV
• Programming resolution current: < 1 A: 0.1 mA (R&S®NGC101: 0.5 mA); ≥ 1 A: 1 mA
• Output measurement readback resolution voltage: 1 mV
• Readback resolution current: < 1 A: 0.1 mA (R&S®NGC101: 0.5 mA); ≥ 1 A: 1 mA
• Readback accuracy voltage: < 0.05 % + 2 mV
• Readback accuracy current: typ. < 0.05 % + 4 mA (R&S®NGC101: typ. < 0.15 % + 10 mA)
• Measurement functions: voltage, current, power, energy
• Protection functions: OVP, OCP, OPP, OTP; FuseLink and fuse delay at output‑on
• Special functions: EasyArb (arbitrary function), EasyRamp, output sequencing, external trigger, data logging
• Display: 3.5" QVGA
• Rear panel connections: connector block with 4 lines per channel; sense connections for each output
• Remote control interfaces (standard): USB, LAN; G models include IEEE‑488 (GPIB)
• Dimensions (W × H × D): 222 mm × 97 mm × 291 mm
• Weight: 2.6 kg
• Rack installation: R&S®HZC95 option (19" rack adapter, 2 HU)
