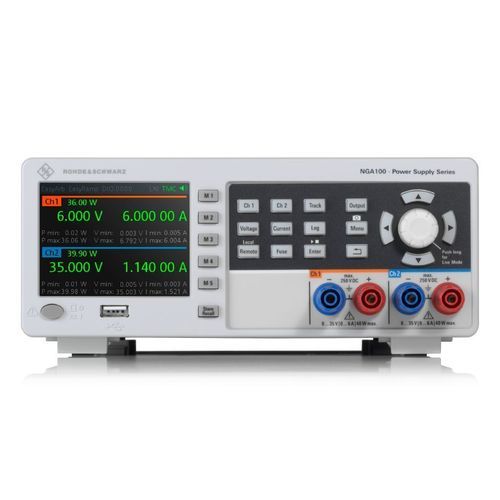

Alimentación eléctrica de mesa R&S®NGA100

DCreguladade corriente constante

Product overview
Linear. Accurate. Affordable. R&S®NGA100 DC power supplies are linear, compact and easy to use in diverse scenarios. All models have excellent readback accuracy with a low-current range for demanding measurements. Data logging, arbitrary waveforms, built-in statistics and remote sensing features make the instruments ideal for various bench applications such as:

• R&D
• Creating IoT low power designs
• Manufacturing
• Education
• General purpose bench use

Equipped with multiple remote interfaces including USB and Ethernet, R&S®NGA100 power supplies are suitable for automated tests. The channel fusion feature extends voltage and current range: up to 200 V in serial mode and up to 12 A in parallel mode for selected models. Advanced protection functions protect connected devices and the power supplies.

Key facts

• Max. output power: up to 80 W (depending on model)
• Output voltage per channel: 0 V to 35 V or 0 V to 100 V (depending on model)
• Output current per channel: up to 6 A or up to 2 A (depending on model)
• Channel fusion: up to 200 V in serial mode or up to 12 A in parallel mode (with channel fusion)
• Intuitive online product configurator with price transparency

Features & benefits

• Linear design: linear output stages provide very low residual ripple and noise, delivering extremely stable output voltage and current for sensitive circuits.
• High readback accuracy: outstanding programming and readback accuracy, low-current measurement range suitable for IoT sleep-mode measurements. For output currents ≤ 200 mA the measurement resolution is 1 µA; currents below 200 mA measured with resolution 1 µA and accuracy ±(0.15 % + 25 µA).
• FlexPower: maximum power available at various operating points; voltage/current combinations covered are shown in FlexPower curves.
• Channel Fusion: two output channels (on multi-channel models) can operate in series or parallel to double voltage or current capability. Serial mode connects outputs internally; parallel mode requires external wiring.
• Measurement & analysis: integrated statistics (min/max) for power, voltage and current; data logging is standard.
• Arbitrary waveform: arbitrary function (EasyArb) available on CH1.
• Protection functions: OVP, OCP, OPP, OTP and FuseLink (on applicable models).
• Interfaces: USB-TMC, USB-CDC (virtual COM) and LAN (standard on models).
• Ease of integration: rear-panel 8-pin connector block for outputs and remote sensing.

Available models (summary)

• R&S®NGA101 — Order Number: 5601.8002.02 — 1 output channel — Max. output power: 40 W — Output voltage per channel: 0 V to 35 V — Output current per channel: 0 A to 6 A — Base price shown on site: 1.170 EUR
• R&S®NGA141 — Order Number: 5601.8002.03 — 1 output channel — Max. output power: 40 W — Output voltage per channel: 0 V to 100 V — Output current per channel: 0 A to 2 A — Base price shown on site: 1.170 EUR
• R&S®NGA102 — Order Number: 5601.8002.04 — 2 output channels — Max. output power: 80 W — Output voltage per channel: 0 V to 35 V — Output current per channel: 0 A to 6 A — Base price shown on site: 1.830 EUR
• R&S®NGA142 — Order Number: 5601.8002.05 — 2 output channels — Max. output power: 80 W — Output voltage per channel: 0 V to 100 V — Output current per channel: 0 A to 2 A — Base price shown on site: 1.830 EUR

Caractéristiques / spécifications techniques

• Total output power: up to 40 W (R&S®NGA101, NGA141) or up to 80 W (R&S®NGA102, NGA142)
• Maximum output power per channel: 40 W
• Output voltage per channel: 0 V to 35 V (NGA101, NGA102); 0 V to 100 V (NGA141, NGA142)
• Maximum output current per channel: 6 A (NGA101, NGA102); 2 A (NGA141, NGA142)
• Voltage ripple and noise (20 Hz to 20 MHz): < 0.5 mV (RMS), < 10 mV (pp) for NGA101/102; < 1.5 mV (RMS), < 20 mV (pp) for NGA141/142 (measured)
• Current ripple and noise (20 Hz to 20 MHz): < 500 µA (RMS) (measured)
• Load recovery time (10 % to 90 % load change to within 0.2 % of rated voltage): < 100 µs (NGA101/102), < 50 µs (NGA141/142) (measured)
• Programming resolution: voltage 1 mV, current 1 mA
• Readback resolution: voltage 1 mV; current 100 µA (for currents < 200 mA: 1 µA)
• Readback accuracy voltage ±(% of output + offset): < 0.02 % + 5 mV (NGA101/102); < 0.02 % + 10 mV (NGA141/142)
• Readback accuracy current ±(% of output + offset): < 0.03 % + 500 µA
• Measurement functions: voltage, current, power
• Protection functions: OVP (over-voltage), OCP (over-current), OPP (over-power), OTP (over-temperature)
• FuseLink function and fuse delay time: on R&S®NGA102 and R&S®NGA142
• Sense function (remote sensing): supported
• Sink mode: not applicable
• Output sequencing and trigger I/O: trigger I/O available with option R&S®NGA-K103
• Arbitrary function: CH1 only (EasyArb)
• Data logging: standard
• Display: 3.5" QVGA
• Rear panel connections: 8-pin connector block (outputs, remote sensing)
• Remote control interfaces (standard): USB-TMC, USB-CDC (virtual COM), LAN
• Dimensions (W × H × D): 222 mm × 97 mm × 448 mm (8.74 in × 3.82 in × 17.64 in)
• Weight: R&S®NGA101 6.6 kg; R&S®NGA141 6.9 kg; R&S®NGA102 7.0 kg; R&S®NGA142 7.3 kg
• Rack installation: with R&S®HZN96, space for two instruments — 19", 2 HU
