Reductor planetario P142 series

coaxialcon eje huecocon brida

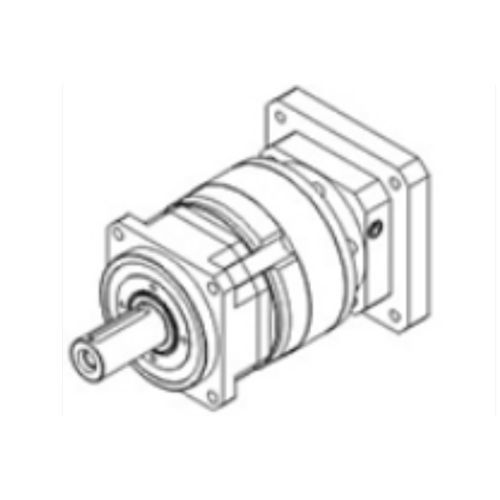

The planetary output support of the reducer adopts an integrated nut to eliminate axial play design. The front and rear bearings are distributed over a large space within the integral housing body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. A one-time processing and finishing process is adopted to ensure extremely high coaxiality.Outline dimension drawing of the reducerMain Technical ParametersLevelFirst stageSecond stageReduction ratio3/4/5/812/15/16/20/25/32/40/64Body length290334.5Maximum radial force10000N12200NMaximum axial force16000N21000NFull load efficiency≥96%≥94%Weight16.5kg22.5kgService life ≥20000hRated input speed2500rpm2500rpmMaximum input speed4500rpm4500rpmMotor power3000W3000WGear precision grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature–25° ~ +90°–25° ~ +90°Protection gradeIP65IP65Lubrication methodLong-term lubricationLong-term lubricationInstallation methodFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications / FeaturesIntegrated nut eliminates axial playHigh torsional rigiditySuper-strong radial and axial load capacityHigh coaxiality due to one-time processingReduction ratios: 3/4/5/8 (1st stage), 12/15/16/20/25/32/40/64 (2nd stage)Body length: 290 mm (1st stage), 334.5 mm (2nd stage)Max radial force: 10000N (1st), 12200N (2nd)Max axial force: 16000N (1st), 21000N (2nd)Full load efficiency: ≥96% (1st), ≥94% (2nd)Weight: 16.5kg (1st), 22.5kg (2nd)Service life: ≥20000h (2nd stage)Rated/max input speed: 2500/4500 rpmMotor power: 3000WGear precision: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection: IP65Lubrication: Long-termInstallation: Flange
