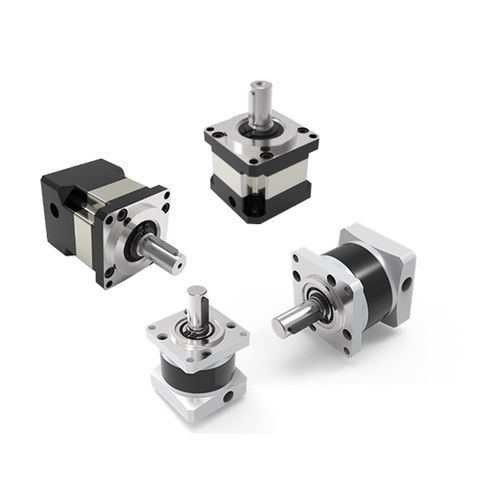

Reductor planetario PF160 series

coaxialcon eje hueco

The planetary output support of the reducer adopts an integrated nut to eliminate axial play design. The front and rear bearings are distributed over a large space within the integral box body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. A one-time processing and finishing process is adopted to ensure extremely high coaxiality.Outline Dimension Drawing of the ReducerMain Technical ParametersStageFirst StageSecond StageThird StageReduction Ratio3/4/5/812/15/16/20/25/32/40/6480/100/120/125/160/200/256/512Body Length290334.5379Maximum Radial Force10000N12200N20000NMaximum Axial Force16000N21000N36000NFull Load Efficiency≥96%≥94%≥90%Weight17.5kg23.5kg27.5kgService Life≥20000h≥20000h≥20000hRated Input Speed2500rpm2500rpm2000rpmMaximum Input Speed4500rpm4500rpm5000rpmMotor Power3000W3000W3000WGear Precision Grade6 GB/T10095 – 20086 GB/T10095 – 20086 GB/T10095 – 2008Operating Temperature–25° ~ +90°–25° ~ +90°–25° ~ +90°Protection GradeIP65IP65IP65Lubrication MethodLong-term lubricationLong-term lubricationLong-term lubricationInstallation MethodFlangeFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications / FeaturesIntegrated nut eliminates axial playSuper-strong integrated structure for high torsional rigidityHigh radial and axial load capacityHigh coaxiality due to one-time processingMultiple reduction ratios availableHigh efficiency and long service lifeIP65 protectionFlange installation
