Reductor planetario WPF42 series

angularcon eje huecocon brida

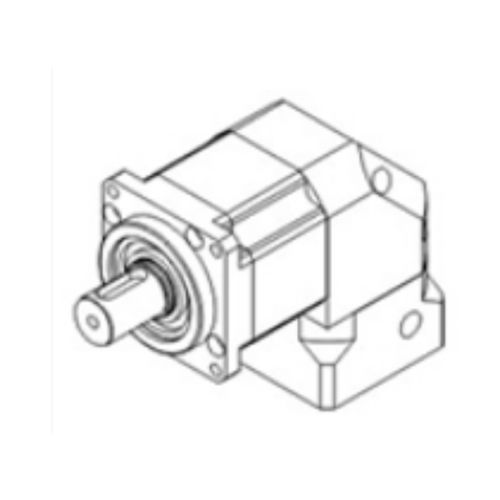

The planetary output support of the reducer adopts an integrated nut to eliminate axial play design. The front and rear bearings are distributed over a large space within the integral housing body, forming a super-strong integrated structure to ensure high torsional rigidity, super-strong radial load capacity, and excellent axial load capacity. A one-time processing and finishing process is adopted to ensure extremely high coaxiality.Outline dimension drawing of the reducerMain technical parameters:LevelFirst stageSecond stageReduction ratio4/5/816/20/25/32/40Body length72.284.2Maximum radial force280N320NMaximum axial force200N240NFull load efficiency≥90%≥86%Weight0.7kg0.9kgService life≥20000h≥20000hRated input speed2500rpm3000rpmMaximum input speed4500rpm6000rpmGear accuracy grade6 GB/T10095 – 20086 GB/T10095 – 2008Operating temperature–25° ~ +90°–25° ~ +90°Protection gradeIP65IP65Lubrication methodLong-term lubricationLong-term lubricationInstallation methodFlangeFlangeCategory: GearboxTag: AC servo motor and driverTechnical Specifications:Planetary output support with integrated nutHigh torsional rigiditySuper-strong radial and axial load capacityExtremely high coaxialityReduction ratios: 4/5/8 (1st stage), 16/20/25/32/40 (2nd stage)Body length: 72.2mm (1st), 84.2mm (2nd)Max radial force: 280N (1st), 320N (2nd)Max axial force: 200N (1st), 240N (2nd)Full load efficiency: ≥90% (1st), ≥86% (2nd)Weight: 0.7kg (1st), 0.9kg (2nd)Service life: ≥20000hRated input speed: 2500rpm (1st), 3000rpm (2nd)Max input speed: 4500rpm (1st), 6000rpm (2nd)Gear accuracy: 6 GB/T10095 – 2008Operating temperature: –25° ~ +90°Protection: IP65Lubrication: Long-termInstallation: Flange
