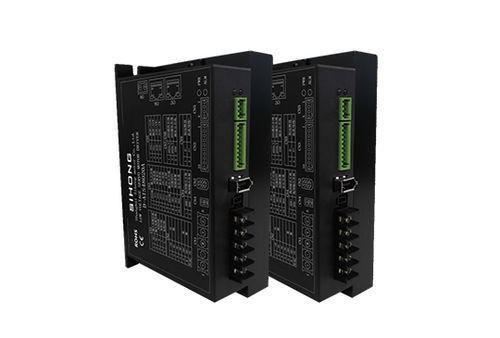

Servo-variador DC D – AIS48025A

ModbusUSBpara PC

Product DetailsFeatures high stability, high positioning accuracy, high motor response, low noise, low heat generation, well-structured design, strong overload capacity, practical and rich functions, and simple and convenient application. It has protections against over-voltage, under-voltage, overspeed, overcurrent, overload, encoder anomalies, position deviation, stop, parameter anomalies, etc.Technical SpecificationsDrive ModelVoltage Range (V)Rated Current (A)D – AIS24008A24 – 368D – AIS48015A24 – 4815D – AIS48025A24 – 6025D – AIS48050A24 – 7250D – AIS48100A36 – 72100D – AIS72200A48 – 96200D – AIS72300A48 – 96300Control Method① Position control ② Speed control ③ Torque control ④ Communication controlControl FeaturesSpeed frequency response: ≥200Hz, Received pulse frequency ≤200kHz, Speed fluctuation rate: < ±0.03 (Load 0 – 100%): < ±0.02×(0.9 – 1.1) Power supply voltageMonitoring FunctionCurrent speed, DI input, DO output, Current position, Command input pulse accumulation, Average load rate, Position deviation count, Motor phase current, Bus voltage value, Module temperature, Alarm log, Command pulse frequency corresponding speed, Operating status, etc.Home – return function13 types of autonomous (search) home – return modes, and home – point compensation functionRs485 FunctionFollows standard Modbus – RTU protocol, one-to-two two-way communication interface for easy networking and parallel connectionController Installation DimensionsProduct model: D – AIS48025ARated voltage: 24 – 60VRated current: 25ASplit-type Drive Hardware InterfaceApplicable drive models: D – AISXX005A / D – AISXX0015A / D – AISXX0025A / D – AISXX0040A / D – AISXX00100A / D – AISXX00200ASplit-type AI MOTOR drive interface diagramSerial No.SymbolFunctionRemarksCn11UMotor U-phaseJVW power cable interface for motor adaptation.2VMotor V-phase3WMotor W-phase4DC–Negative pole of input power supply.External DC input power supply must distinguish positive and negative poles; voltage range: DC48V5DC+Positive pole of input power supply.Cn215V+Motor encoder power interfacePower interface for adapting motor encoder.2GNDPower interface3NCEmpty terminalNo function4NCEmpty terminalNo function5SD+Motor encoder communication interfaceCommunication interface for adapting motor encoder.6SD–CN31DI–COMCommon terminal for input signals.Common terminal for all DI input signals. When DI–COM is connected to the positive pole, negative DI control is effective; when EN–COM is connected to the negative pole, positive DI control is effective.2DI1Input signal terminal 1Factory default: servo enable3DI2Input signal terminal 2Factory default: alarm reset4DI3Input signal terminal 3Factory default: emergency stop5DI4Input signal terminal 4Factory default: JOG positive jog6DI5Input signal terminal 5Factory default: JOG negative jog7DO–COMCommon terminal for output signals.Common terminal for all DO output signals. When DO–COM is connected to the positive pole, positive DO action output is effective; when DO–COM is connected to the negative pole, negative DO action output is effective.8DO1Output signal terminal 1Factory default: servo ready9DO2Output signal terminal 2Factory default: fault alarm output10DO3Output signal terminal 3Factory default: positioning completion outputCN41BRK+Positive pole of brake output.Interface for adapting the mechanical brake (brake) of the motor2BRK–Negative pole of brake output.Selection Reference Table for Split-type Unit CN9 Interface Brake ResistorSplit-type Drive ModelRated Output CurrentExternal Brake Resistor Value RequirementExternal Brake Resistor Power RequirementD – AISXX008A8A10 ohms – 30 ohms rangeOver 100WD – AISXX0015A15A10 ohms – 30 ohms rangeOver 100WD – AISXX0025A25A10 ohms – 30 ohms rangeOver 100WD – AISXX0050A50A5 ohms – 15 ohms rangeOver 200WD – AISXX00100A100A5 ohms – 15 ohms rangeOver 200WD – AISXX00200A200A5 ohms – 15 ohms rangeOver 200WStandard Wiring DiagramInput Power Supply WiringNote 1: The input power supply terminals must strictly distinguish positive and negative poles. The input power supply voltage range may vary depending on the model. Refer to the hardware interface reference wiring for the corresponding model in the previous chapter.Note 2: This product has a certain overload capacity. When selecting an external switching power supply, the output capacity should be 1.5 times the rated current of this product. The rated current of the product is indicated on the nameplate.High-speed Pulse Signal WiringCollector – Open WiringDifferential Signal WiringNote 1: For different motors, the positions of the pulse input terminal interfaces may vary. Refer to the hardware interface description for the corresponding model in the previous chapter.Note 2: This product supports pulse input with a wide voltage range of 5 – 24V, and the maximum received pulse frequency is 200KHZ. The high-level pulse device should pay attention to limiting the frequency to 200 K to avoid the driver easily missing pulses and causing positioning anomalies.Note 3: It is recommended to use double-shielded cables for pulse control lines and avoid placing them in the same circuit as strong current cables – strong interference sources, which can effectively protect against strong external magnetic interference.Note 4: The above pulse connection methods must be consistent with H05–15 parameters. The factory default for H05–15 is pulse + direction command mode.DI and DO WiringAT Input Terminal WiringNote 1: The control voltage of the input terminals is valid at DC12–24V.Note 2: Each DI can be freely assigned different functions (refer to section 4.2 DIDO parameter section), but the same function cannot be assigned to multiple DIs.Note 3: For external switch signal control with DC– input, select the NPN-type connection method, where low level is effective; for external switch signal control with DC+ input, select the PNP-type connection method, where high level is effective.DO Output Terminal WiringNote 1: The maximum drive capacity of the output terminals is <300mA current. If it is necessary to drive a large load, a relay should be used for conversion.Note 2: Each DO can be freely assigned different functions (refer to section 4.2 DIDO parameter section).Note 3: When controlling the DO port action, if DC– is output, select the NPN-type connection method, where low-level output is effective; if DC+ is output, select the PNP-type connection method, where high-level output is effective.RS485 Communication WiringMulti-slave ConnectionNote 1: For multi-slave connection, if the communication signal noise is large, it is recommended to add a 120-ohm terminal resistor to the last slave to ensure communication quality.Note 2: For communication-related content, refer to (section 4.5 RS485-related parameters).Host Computer Debugging ConnectionNote 1: Generally, a computer does not have a direct 485 interface, and a USB-to-485 converter is required to connect to the slave motor driver.Note 2: The host computer debugging software for PC can be downloaded from our company's official website, which is convenient for users to debug.Product Model: D – AIS48025ARated Voltage: 24 – 60VRated Current: 25AControl Methods: Position, Speed, Torque, CommunicationProtections: Over-voltage, Under-voltage, Overspeed, Overcurrent, Overload, Encoder anomaly, Position deviation, Stop, Parameter anomalyCommunication: RS485, Modbus RTUPulse Input: 5–24V, up to 200kHzMonitoring: Current speed, DI/DO, Position, Pulse accumulation, Load rate, Phase current, Bus voltage, Module temperature, Alarm log
