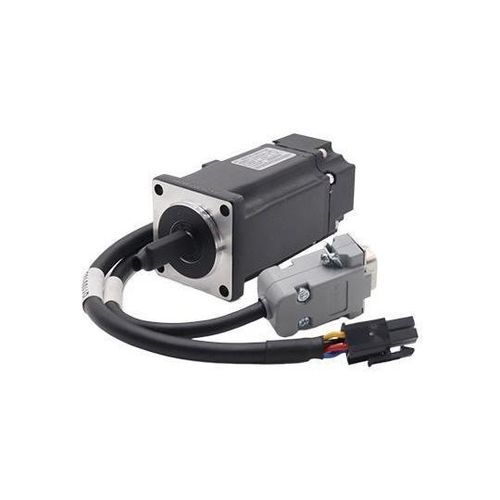

Servomotor AC 40B series

220Vde alta velocidadrendimiento

Features: 17-bit and 23-bit absolute value photoelectric encoder, with high range and high responsiveness; Speed: Excellent high-speed performance, the nominal speed can generally reach 3000 rpm, and the maximum speed can reach 6000 rpm; Adaptability: Strong overload resistance, can withstand a load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring quick start; Stability: Smooth operation at low speed, during low-speed operation there will be no step-like operation phenomenon similar to stepper motors. Suitable for occasions with high-speed response requirements; Opportunity: The dynamic acceleration and deceleration response time of the motor is short, generally in tens of milliseconds; Comfort: Heat and noise are significantly reduced. Product Specifications: Model40BST-M00130 (Standard)40BST-M00130Z (With brake)40BST-M00330 (Standard)40BST-M00330Z (With brake) Rated Power (W)5050100100 Rated Torque0.159 Nm / 1.62 kcf·cm0.159 Nm / 1.62 kcf·cm0.318 Nm / 3.25 kcf·cm0.318 Nm / 3.25 kcf·cm Detent Torque0.159 Nm / 1.62 kcf·cm0.159 Nm / 1.62 kcf·cm0.318 Nm / 3.25 kcf·cm0.318 Nm / 3.25 kcf·cm Max Instantaneous Torque0.56 Nm / 5.71 kcf·cm0.56 Nm / 5.71 kcf·cm1.11 Nm / 11.3 kcf·cm1.11 Nm / 11.3 kcf·cm Rated Speed (rpm)3000300030003000 Max Speed (rpm)6000600060006000 Rated Current (A)0.77 (0.86 with oil seal)0.77 (0.86 with oil seal)1.18 (1.24 with oil seal)1.18 (1.24 with oil seal) Detent Current (A)0.690.691.11.1 Max Instantaneous Current (A)2.502.503.923.92 Torque Constant0.2325 N·m/A / 2.372 kcf·cm/Asame0.2885 N·m/A / 2.944 kcf·cm/Asame Back EMF Constant24.37×10⁻³ V/r/minsame30.23×10⁻³ V/r/minsame Resistance (Ohm)60.5460.5431.7131.71 Inductance (mH)53.3853.3837.137.1 Mechanical Time Constant (EM)2.963.171.852.11 Electrical Time Constant (EM)0.8820.8821.171.17 Rotor Inertia0.0288 gf·cm·s²0.0309 gf·cm·s²0.053 gf·cm·s²0.060 gf·cm·s² Rated Torque to Inertia Ratio9.128.5119.8817.46 Outline drawing: Encoder: 17-bit and 23-bit absolute value photoelectric encoderNominal speed: up to 3000 rpmMaximum speed: up to 6000 rpmOverload resistance: up to 3 times rated torqueDynamic response: tens of millisecondsLow heat and noise
