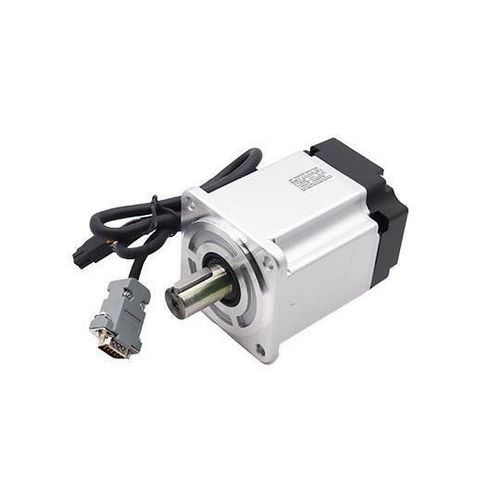

Servomotor AC 80BST-C0 series

220Vcon imán permanenteIP65

Features: 17-bit and 23-bit absolute value photoelectric encoder, with high range and high responsiveness; Speed: Excellent high-speed performance, the nominal speed can generally reach 3000 rpm, and the maximum speed can reach 6000 rpm; Adaptability: Strong overload resistance, can withstand a load three times the rated torque, especially suitable for occasions with instantaneous load fluctuations and requiring quick start; Stability: Smooth operation at low speed, during low-speed operation there will be no step-like operation phenomenon similar to stepper motors. Suitable for occasions with high-speed response requirements; Opportunity: The dynamic acceleration and deceleration response time of the motor is short, generally in tens of milliseconds; Comfort: Heat and noise are significantly reduced. Product Specifications ModelVoltage (VAC)Current (A)Torque (Nm)BrakeWeight (kg)Body Length (mm) 808 ST-C02430-2B12204.52.39Without brake102 808 ST-C02430-2B1-Z2204.52.39With brake128 808 ST-C03230-2B12205.93.2Without brake113 808 ST-C03230-2B1-Z2205.93.2With brake140 Motor Specifications Model80BST-C02430-2B180BST-C02430-2B1-Z80BST-C03230-2B180BST-C03230-2B1-Z Rated Voltage (V)220220220220 Rated Power (W)75075010001000 Rated Current (A)4.54.55.95.9 Rated Torque (Nm)2.392.393.23.2 Rated Speed (rpm)3000±10%3000±10%3000±10%3000±10% Max Speed (rpm)5000±10%5000±10%5000±10%5000±10% Back EMF Constant (V/Krpm)34.334.33636 Line Resistance (Ohm)1.451.450.920.92 Line Inductance (mH)4.954.953.43.4 Rotor Inertia (10⁻¹kg·m²)1.481.481.931.93 Torque Constant (Nm/A)0.530.530.540.54 Electrical Time Constant (ms)3.413.413.73.7 BrakeWithout brakeWith brakeWithout brakeWith brake Body Length (mm)102128113140 Rotor Pole Pairs5P Insulation ClassClass F Protection RatingIP65––IP5 Outline drawing: Encoder: 17-bit and 23-bit absolute value photoelectric encoderNominal speed: up to 3000 rpmMaximum speed: up to 6000 rpmOverload resistance: up to 3 times rated torqueDynamic response time: tens of millisecondsReduced heat and noiseInsulation class: FProtection rating: IP65Rotor pole pairs: 5
