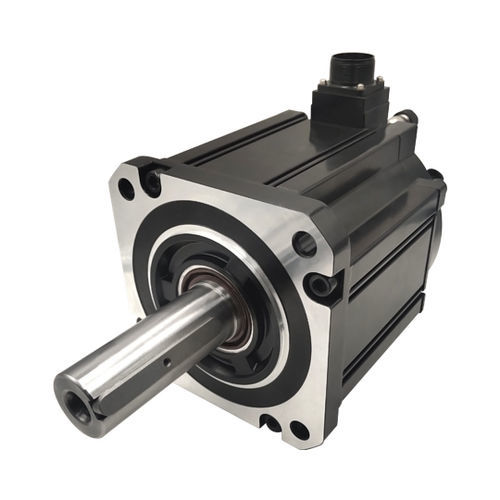

Servomotor trifásico 180B series

380 VIP65de alto par

Features: 17-bit/23-bit absolute value photoelectric encoder, with high-end and high responsiveness characteristics. Speed: High-speed performance is good. Generally, the rated speed can reach 3000 rpm, and the maximum speed can reach 6000 rpm. Adaptability: Strong overload resistant ability, able to bear three times the rated torque load. Particularly suitable for occasions with load fluctuations and requiring quick starts. Stability: Runs smoothly at low speeds, without the step-like running phenomenon similar to stepper motors. Suitable for occasions with high-speed response requirements. Opportunity: The dynamic response time for acceleration and deceleration of the motor is short, generally in tens of milliseconds. Comfort: Heat generation and noise are significantly reduced. Motor Specifications Motor Model 180BST-M18615 180BST-M28415 180BST-M35015 180BST-M48015 Rated Power (W) 2900 4400 5500 7500 Rated Line Voltage (V) 380 380 380 380 Rated Line Current (A) 10.0 14.5 17.8 23.0 Rated Speed (rpm) 1500 1500 1500 1500 Rated Torque (Nm) 18.6 28.4 35 48 Maximum Torque (Nm) 54 71 87.5 96 Back EMF (V/1000min) 137.5 153 172 170 Torque Constant (N.m/A) 1.86 1.95 1.98 2.09 Rotor Inertia (kg·m²) 4.4X10⁻⁶ 6.6X10⁻⁶ 10.2X10⁻⁶ 14.6X10⁻⁶ Rotor Inertia with Brake (kg·m²) 5.9X10⁻⁶ 8.0X10⁻⁶ 11.0X10⁻⁶ 15.6X10⁻⁶ Winding (Phase) Resistance (Ohm) 1.1 0.9 0.62 0.42 Winding Inductance (mH) 15.2 13.9 10.9 8.7 Electrical Time Constant (EM) 13.8 15.4 17.5 15.9 Maximum Speed (rpm) 2500 2000 2000 2000 Encoder Type Photoelectric Pulse Encoder/Absolute Value Encoder/Resolver Motor Insulation Class Class F Protection Class IP65 Operating Environment Ambient Temperature: –20°C – 40°C; Relative Humidity: ≤90% (non-condensing) Weight Winding Terminal Terminal Color – U (Red), V (Yellow), W (Blue), PE (Green-Yellow) Quantity of Output Wires 4 Incremental Encoder Connector (15-pin) Terminal Numbers: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 1 Terminal Leads: 5V, 0V, A+, B+, Z+, A-, B-, Z-, U+, V+, W+, U-, V-, W-, PE Absolute Value Encoder Connector (7-pin) Terminal Numbers: 2, 3, 4, 6, 7, 10 Terminal Leads: E-, E+, SD-, 0V, SD+, +5V, PE L – Without brake 176 200 237 283 L – With brake 224 248 285 331 Shaft Diameter LR 79 79 113 113 Shaft Diameter S 35(-0.01 – 0) 35(-0.01 – 0) 42(0 – 0.016) 42(0 – 0.016) Keyway Length QK 60 60 90 90 Keyway Width W 10 10 12 12 Shaft End Thread M M12 Depth 25 Technical Specifications / Features: 17-bit/23-bit absolute value photoelectric encoder High-end and high responsiveness Rated speed up to 3000 rpm, max speed up to 6000 rpm Strong overload resistance (up to 3x rated torque) Smooth operation at low speed, no stepper-motor-like stepping Short dynamic response time (tens of ms) Significantly reduced heat and noise Protection class: IP65 Insulation class: F Operating temperature: –20°C to 40°C Relative humidity: ≤90% (non-condensing)
