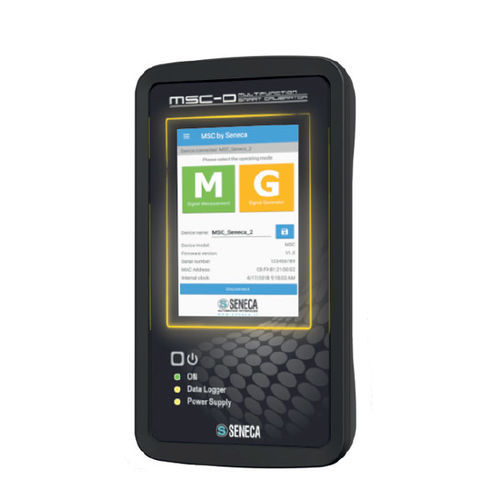

Calibrador de temperatura MSC-D

multifunciónde tensiónde corriente

MSC-D (Multifunction Smart Calibrator) is a multifunction calibrator designed for the maintenance and testing of sensors and process measuring instruments. With an accuracy better than 0.05% on every type of input and output, it ensures reliable measurements and the generation of analog, digital, temperature sensor, and load cell signals.Thanks to its advanced connectivity, MSC-D has an intuitive interface and can be operated directly or remotely via the integrated display. It features both an Ethernet port and a built-in Wi-Fi receiver, allowing seamless network integration and easy access to the embedded web server via a browser without requiring additional software. This enables practical and efficient use via the workstation. To ensure secure access, the device can be password-protected.Its advanced functionalities include automatic ramp generation, both single and looped, as well as a data logging system that allows users to record and export data in .CSV format.The rechargeable lithium-polymer battery can power external devices or sensors, making it a versatile solution suitable for various professional and industrial applications. With a reading capacity of up to 100,000 measurements, it is ideal for maintenance, technical support, measurement and calibration laboratories, quality control, electromechanical workshops, and PLC programming.Portable shockproof caseCalibrator complete with internal batteryFactory calibration reportBattery charger and USB-A to micro USB cableA practical guide to wiring1 Type K thermocouple4 Test and connection cablesTechnical Specifications:Power supply from mains: 100-240 VAC via standard Micro USB battery chargerBattery: 1 Lithium Polymer (LiPo) 3400 mAhSwitching on: By button or automatic (depending on mains power supply)Autonomy: 4 hours (minimum at maximum load)Degree of protection: IP20Overvoltage protection: 240 Vac max without permanent damageOperating temperature: -20..50°C (not charging), 0..40°C during chargingLong-term storage temperature: 0..35°CHumidity: 30..90 % non-condensingDimensions (WxHxD): 96 x 171 x 44 mmWeight: 395 gRejection: 50/60 HzSampling Frequency: 10 HzOperating Modes: Meter, Generator, Datalogger, RampsMemory: 16MB Flash, 8 MB RAMDisplay: 5-point capacitive touch display, TFT-LCD 262k colors, 3.5“, 53x71mm, 320x480 resolution, with backlightManagement systems: Touch display interface and WebServer with integrated multilingual APP (Italian, English, German, French, Spanish)Supplied with: (1) Portable case, (2) MSC-D with battery, (3) adapter, (4) USB charging cable, (5) factory calibration report, (6) test cablesCalibration report: On requestCertification: CEStandards: EN61326-1; EN61010-1Measurement Accuracy: 0.03% basic, 0.04% for currentResolution: 1 µA; 1 mV; 5 µV; 0.1°C; 0.1uV/VGeneration Accuracy: 0.03% basic, 0.04% for currentResolution: 1 µA; 1 mV; 5µV; 0.1°C; 0.02 Ohm; 0.1 uV/VInterfaces and Signals: On/Off button, Power on LED, Battery charge status LED, Datalogger on LED, Buzzer for overload and simulation errors, 4 x 4mm bushings, Mini plug (7.9mm) for thermocouple measurement and simulationCommunication: Micro USB for firmware updates, Integrated 2.4 GHz WiFi (802.11 b/g/n, up to 150 Mbps); Access Point/Station mode, 1 Fast Ethernet 100 Tx port, Modbus TCP-IP protocol; max 8 TCP-IP clients, control web serverMeasuring Functions: Current: 0.1..24 mA active and passive; protection ± 28 V, Voltage (V): 0..26 V, Voltage (mV): -10mV..+90mV, Thermocouple: Type J,K,T,E,N,R,S,B,L, Thermoresistances (2,3,4 wires): Pt100, Pt500, Pt1000, Cu50, Cu100, Ni100, Ni120, Load cell: 350 Ohm; -0.2..+3mV/V, Pulse: Max. count 1000 Hz, Frequency: 0.1..1000 HzGeneration Functions: Current: 0.1..24 mA active and passive; protection ± 28 V, Voltage (V): 0.1..26 V, Voltage (mV): -10mV..+90mV, Thermocouple: Type J,K,T,E,N,R,S,B,L, Thermoresistances (2 wires): Pt100, Pt500, Pt1000, Cu50, Cu100, Ni100, Ni120, Load cell: 350 Ohm; -0.2..+3mV/V, Pulse: Min 0.5 ms (1..24V) number of pulses can be set, Frequency: 0.1..1000 Hz; resolution 50µsData Logger: Yes, Sampling time: >500 msRamp Function: Signal: Current/Voltage/TC/RTD/Load cell, Functions: Single or Loop, Type: Maximum 9 segments, ramp resolution 100ms, minimum ramp 1 secondSettings and Signals: General setup (select type of operation, type of signal, language, mains frequency 50/60Hz, std or expert mode), Measurement (select voltage / current / passive current / thermocouples / resistance thermometers / bridge / pulses), Datalogger (start/stop/pause) and data visualization, Generation (selection of voltage / current / passive current / thermocouples / thermoresistances / bridge / pulses), Generation of signals in ramp mode or with presets (10 for each mode)Error messages: Overvoltage Voltage reading higher than 28 V, Under voltage Voltage reading lower than -0.2 V, Over-current Current reading higher than 24 mA, Under current reading lower than -0.1 mA, Resistance lower than 18 Ohm, Resistance higher than 400 Ohm, The load cell is not powered correctly, Value flashing Voltage/current/resistance/bridge generation unsuccessful
