Dielectrímetro para aceite aislante YDJ

DCde alta tensiónportátil

Product Introduction

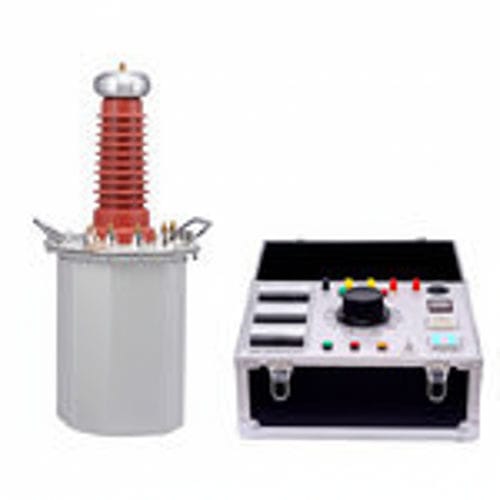

The YDJ Pointer 5kVA Oil-Immersed AC Test Transformer is a traditional high-voltage testing device that utilizes oil insulation to deliver stable AC withstand voltage tests on electrical equipment. With a 5kVA capacity, it is well-suited for testing medium-sized apparatus such as transformers and cables. The pointer-style analog interface provides clear, real-time readings of voltage and current. The oil-immersed design ensures effective heat dissipation and reliable insulation performance, making this classic tester an ideal choice for industrial and laboratory applications that demand robust dielectric strength validation.

Product Characteristics

• Superior Material & Reliable Quality – The high-voltage test transformer features carefully selected materials, ensuring reliable quality and excellent operational stability.
• High Voltage Margin & Low Partial Discharge – Designed with a large voltage margin, a compact corona ring, and minimal partial discharge levels for enhanced performance.
• Compact & Lightweight Design – Utilizes advanced new insulation materials, resulting in a smaller footprint and lighter weight for improved portability.

Main application scenarios

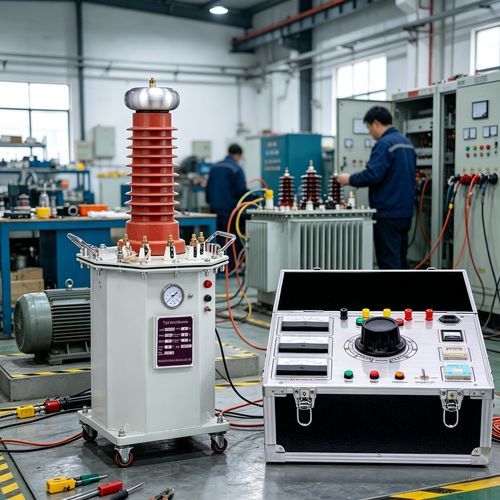

• Power system testing: used to test transformers, switchgear, relays, and transmission lines by applying high voltage/high current to detect performance under load and overload conditions.
• Insulation material testing: performs voltage withstand tests on insulation materials (cables, insulators, transformer windings, etc.) to verify reliability and safety under working conditions.
• Voltage withstand test: partial discharge and leakage current tests to evaluate insulation level and compliance with safety standards.
• Fault simulation testing: short circuit testing, overvoltage testing, and frequency response testing to check stability and protection performance under fault conditions.
• Electronic device testing: evaluate components or circuits in liquid media to ensure reliability and durability under immersion conditions.
• Mechanical engineering applications: simulate wear and friction in lubricating or hydraulic oil environments to evaluate performance and lifespan.
• Materials science research: closed-environment testing for corrosion resistance or high-temperature resistance of materials.
• Automotive industry applications: evaluate components that must withstand lubricating oil or preservative environments.
• Medical equipment testing: simulate physiological-fluid-like conditions to evaluate compatibility and safety performance.

Comparison of Advantages and Disadvantages of Various Test Transformers
Represented below as rows separated by line breaks (columns separated by ' | '):
Parámetros técnicos (tabla)
specifications and models | capacity(kVA) | High Voltage(kV) | high-tension current(mA) | low input voltage tension(V) | low input voltage electricity(A) | ratio of transformation (high/rites) | temperature rise ℃ (30 minutes)
YDJ-3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10
YDJ-5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10
YDJ-10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10
YDJ-20/50 | 20 | 50 | 400 | 200 | 50 | 500 | 10
YDJ-30/50 | 30 | 50 | 600 | 200 | 50 | 500 | 10
YDJ-50/50 | 50 | 50 | 1000 | 200 | 125 | 500 | 10
YDJ-5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10
YDJ-10/100 | 10 | 100 | 100 | 200 | 25 | 1000 | 10
YDJ-10/25 | 10 | 25 | 400 | 200 | 25 | 1000 | 10
YDJ-20/100 | 20 | 100 | 200 | 200 | 50 | 1000 | 10
YDJ-30/100 | 30 | 100 | 300 | 200 | 75 | 1000 | 10
YDJ-50/100 | 50 | 100 | 500 | 200 | 125 | 1000 | 10
YDJ-15/150 | 15 | 150 | 100 | 200 | 37.5 | 1000 | 10
YDJ-20/150 | 20 | 150 | 133 | 200 | 50 | 1000 | 10
YDJ-30/150 | 30 | 150 | 200 | 200 | 75 | 1000 | 10
YDJ-50/150 | 50 | 150 | 333 | 200 | 125 | 1000 | 10
YDJ-100/150 | 100 | 150 | 667 | 200 | 250 | 1000 | 10
YDJ-50/200 | 50 | 200 | 250 | 200 | 125 | 1000 | 10
YDJ-100/200 | 100 | 200 | 500 | 200 | 250 | 1000 | 10
YDJ-150/200 | 150 | 200 | 750 | 200 | 375 | 1000 | 10
YDJ-200/200 | 200 | 200 | 1000 | 200 | 500 | 1000 | 10
YDJ-300/200 | 300 | 200 | 1500 | 200 | 750 | 1000 | 10
YDJ-50/300 | 50 | 300 | 170 | 200 | 125 | 1000 | 10
YDJ-100/300 | 100 | 300 | 333 | 200 | 250 | 1000 | 10
YDJ-150/300 | 150 | 300 | 500 | 200 | 375 | 1000 | 10
YDJ-200/300 | 200 | 300 | 667 | 200 | 500 | 1000 | 10
YDJ-300/300 | 300 | 300 | 3000 | 200 | 750 | 1000 | 10

Frequently Asked Questions (excerpt)

• Before operation: the shell and iron core must be grounded at one point; grounding resistance should not exceed 0.5 Ω. Check insulation oil level to avoid exposed high-voltage lead.
• If voltage cannot rise although regulator is at maximum: possible reasons include large supply line voltage drop, severe insulation breakdown (short circuit/leakage), or poor contact of carbon brush/broken winding of voltage regulator.

Características / especificaciones técnicas

• Tipo: Oil-immersed AC/DC hipot test transformer (pointer analog display).
• Capacidad del ejemplar mostrado en título: 5 kVA (modelo YDJ Pointer 5kVA).
• Aislamiento: aceite para disipación térmica y aislamiento fiable.
• Interfaz: Indicador analógico tipo pointer para lecturas en tiempo real de tensión y corriente.
• Diseño: compacto y ligero gracias a nuevos materiales de aislamiento; corona ring para baja descarga parcial.
• Gama de modelos: múltiples variantes YDJ (capacidades y tensiones detalladas en la tabla de parámetros técnicos anterior).
